High Speed Data Logger With Ethernet

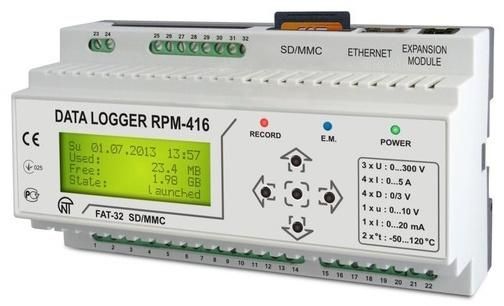

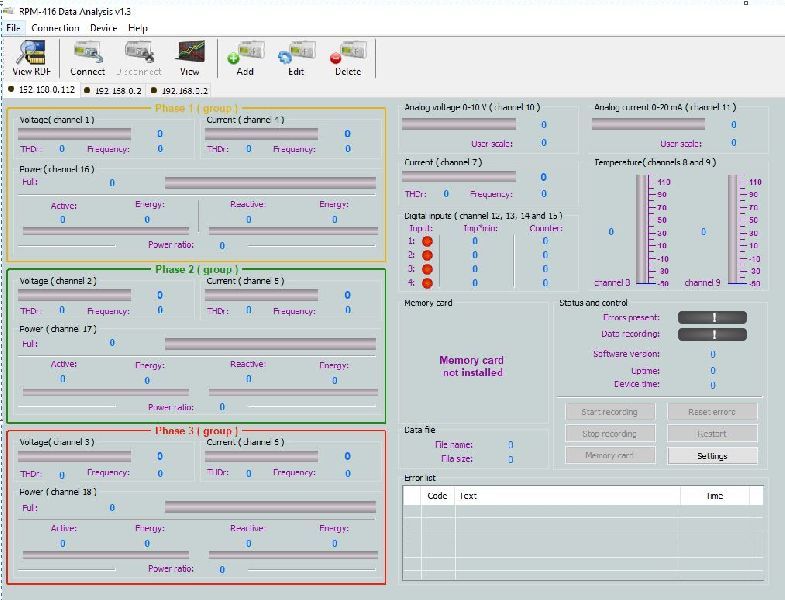

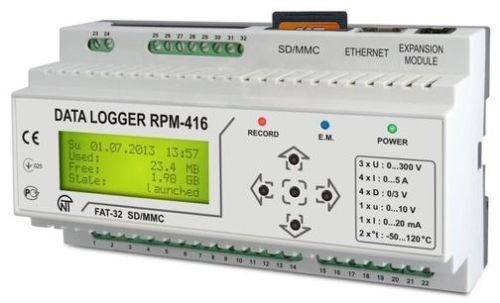

We are offering high speed data logger with ethernet. Data logger rpm-416 is a microprocessor based device intended for electrical parameters measuring and monitoring on the data logger display as well as data archiving. The data archiving is made on the removable memory card (sd mmc), which can be later analyzed by software program rpm-416 data analysis, installed on the standard or portable pc. Data files have extension ―rdf‖. Data logger rpm-416 has an inbuilt real time clock with power from a lithium-type battery. Rpm-416 can be connected to ethernet network via standard 10base-t or 100base-t. In this case simultaneously with data recording to memory card, the rpm-416 configuration and data transmitting to the pc is possible. The main possibilities of the data logger: multi-channeling – one data logger is sufficient for all working data receiving from the controlled device;  versatility – the additional modules can be connected to the data logger which makes it possible to expand the range of incoming signals (voltage, current, temperature, discrete inputs, etc.);  high fidelity – self-control system and data saving algorithm protect against data loss in case of emergency situations (power supply failure);  servicing convenience – four-lined symbolic display with illuminating enables to adjust the data logger and monitor its work (the values of recorded incoming signals are shown on the display), the key-board is used for setting and control of the data logger;  remote monitoring and configuration – if the data logger is installed in a hard accessible place with ethernet connection it can simultaneously with the data recording on the memory card make data transmitting to pc. It enables to make a remote monitoring of the object. The more detailed analysis can be made on the basis of the data collected in the sd card.
