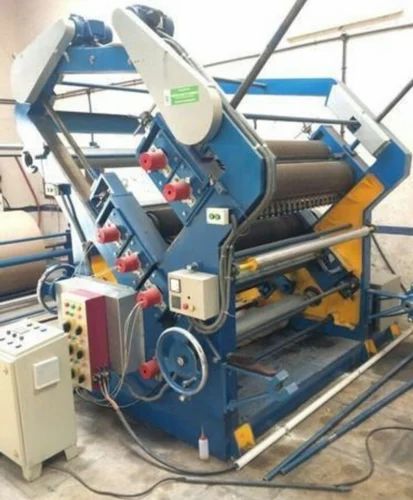

High Speed Double Profile Paper Corrugating Machine

to retain our goodwill in clients'''''''''''''''' consideration, we are manufacturing and supplying an excellent range of paper corrugation machine.

other details:

we offer double profile corrugation machinery which offers high rate of production and enhanced efficiency. The rolls are mounted on roller bearing for smooth running and longer life, minutely finished. Flute foils result in perfect formation of flutes, lubrication system based on high temperature fluorinated grease which solves a long standing industry provlen with recirculating oil lubrication system, with elimination of lubricating oil system, the wastage of oil and leakage on the floor is prevented. Two pre heaters are provided with the machine.

specifications:

size.   power.   heating load.    output per min
42"       10.5.            33kw.         120 ft
52”       11 . 5 hp.     33 kw.       120 ft
62”       13 hp.          39kw.         120 ft
72”       15 hp.      on steam.      120 ft
features:

sturdy designperformance orientedeasy maintenance

1. Double profile single face corrugation machine with bearing mounted rolls saves precious space in factory
2. Machine is supplied with two sets of any two types of flute rolls
3. Immediate & trouble free change over of fluting medium in just  minutes
4. Motorised liftimg & lowering rolls assemble
5. Two sets flute rolls ( as per requirment)
with diameter  233 mm
6. Alloy steel material
7. Rolls  are mounted on beaeing
8. Gear box based reduction system
9. Heavy duty helical gear box for main drive
10. Pre  heaters 2 no''''''''s
11. Pre heaters diameter 165 mm
12. Eddy current drive motor 11. 5 h. P
13. Variable motor speed control board
14. A. C drive panal
15. Rolls material en19
16. Stainless steel gum tray
17. Rewinding arrangements with 2 no''''''''s  rewinding shawts
18. Complete tools box
19. Electric control panal
hydraulic lifting reel stand
20 . Unwinding shawts 2
with capacity of lifting 1000 mm  dia reels
