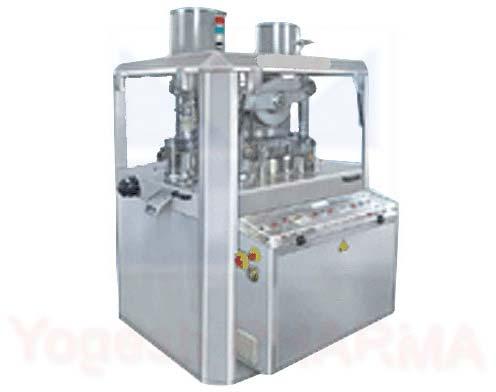

High Speed Double Side Rotary Tableting Machine -1

Sold By : Yogesh Pharma Machinery Pvt. Ltd

Product Specifications

MaterialStainless Steel
Number Of FlowerRotary Tableting Press
Turret DriveClosed Gear Box Through Internal Teeth Gearing & Electro Magnetic Clutch
Lubrication SystemAuto Lubrication System
DesignConforming To GMP Norms
Turret3 Pc. With Lower Punch Seal
CleanlinessEasy To Maintain And Clean
OperationSimple And Convenient
Control PanelClosed Front Electric Control Panel
ChangeoverFast And Quick
Models Available37 Stn. - D,45 Stn. - B,55 Stn.,61 Stn. - BB
Max Output4,38,000 Tablets/hr
Drive TypeAC Frequency Drive
Supply TypeManufacturer, Exporter, Supplier, Retailer, Trader

Preferred Buyer From : All over the world

Product Overview

High Speed Rotary Tableting Press for large production with Design Conforming to GMP norms.
Y-Mek High Speed Double Side Rotary Tableting MachineSimple and convenient operation, changeover, cleanliness and easy to maintainAvailable in different Models 37 Stn. – D, 45 Stn. – B, 55 Stn. & 61 Stn. – BB Tablet compression machine with max. output of 4,38,000 Tablets/hr.AC Frequency Drive.Turret Drive from closed gear box through internal teeth gearing & Electro Magnetic Clutch.S. S. Die pot, 3 pc. Turret with lower punch seal
Hydraulic Power Pack for pressure loading and releasing
Fast and quick changeover and easy cleaning designAuto Lubrication systemClosed Front Electric Control Panel

Optional PLC Control Available

TYPE	Y-Mek Xpress Y -II- 61 Stn.	Y-Mek Xpress Y -II - 55	Y-Mek Xpress Y - II 45	Y-Mek Xpress Y -II- 37
No. of Stations	61	55	45	37
Type of Tooling	BB	BBB	B	D
Output Tablets per hour.	132000 to 438000	120000 to 396000	96000 to 324000	86000 to 222000
Max. Operating Pressure	65 kn	65 kn	65 kn	100 kn
Max. Tablet Diameter	11 mm	11 mm	16 mm	25 mm
Depth of fill	17.5 mm	17.5 mm	17.5 mm	20.5 mm
Upper Punch Penetration	3 to 6.5 mm	3 to 6.5 mm	3 to 6.5 mm	3 to 6.5 mm
Power (Total)	7 kW/9.5 hp	7 kW/9.5 hp	7 kW/9.5 hp	7 kW/9.5 hp
Main Electric Motor	7.5 hp	7.5 hp	7.5 hp	7.5 hp
Powder Feeder Motor	0.25 hp	0.25 hp	0.25 hp	0.25 hp
