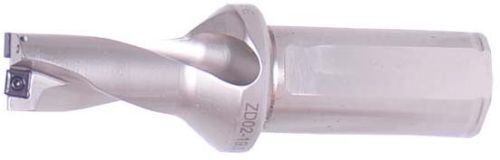

High Speed Drill (2D-SP)

Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Complying with its very name, our High Speed Drill (2D-SP) is outstanding when it is about speed. The High Speed Drill, offered by us, is widely demanded because of its highlighted attributes such as 2*D of SP insert of high speed drill, little length to diameter ratio and good rigidity amongst many others. The High Speed Drill is suitable for efficient processing.

View More Details

Send Enquiry

Product Details

Specifications :

Model	L1	L2	L	D	d	Applicable to Insert	Screw	Wrench
ZD02-13.0-XP25-SP05-02	31	56	104	13	25	SPMG050204	M2X5	T6
ZD02-14.0-XP25-SP05-02	33	56	106	14
ZD02-15.0-XP25-SP05-02	35	56	108	15
ZD02-16.0-XP25-SP06-02	37	56	110	16		SPMG060204	M2.2 X5
ZD02-17.0-XP25-SP06-02	39	56	112	17
ZD02-18.0-XP25-SP06-02	41	56	114	18
ZD02-19.0-XP25-SP06-02	43	56	116	19
ZD02-20.0-XP25-SP06-02	45	56	119	20
ZD02-21.0-XP25-SP06-02	47	56	121	21
ZD02-22.0-XP25-SP07-02	49	56	123	22		SPMG07T308	M2.5X6	T8
ZD02-23.0-XP25-SP07-02	51	56	125	23
ZD02-24.0-XP25-SP07-02	53	56	127	24
ZD02-25.0-XP32-SP07-02	55	60	141	25	32
ZD02-26.0-XP32-SP07-02	57	60	143	26
ZD02-27.0-XP32-SP07-02	59	60	145	27
ZD02-28.0-XP32-SP09-02	61	60	147	28		SPMG090408	M3.5X8	T15
ZD02-29.0-XP32-SP09-02	63	60	149	29
ZD02-30.0-XP32-SP09-02	65	60	151	30
ZD02-31.0-XP32-SP09-02	67	60	153	31
ZD02-32.0-XP32-SP09-02	69	60	155	32
ZD02-33.0-XP32-SP09-02	71	60	157	33
ZD02-34.0-XP32-SP11-02	73	60	159	34		SPMG110408	M4X10
ZD02-35.0-XP32-SP11-02	75	60	161	35
ZD02-36.0-XP32-SP11-02	77	60	163	36
ZD02-37.0-XP32-SP11-02	79	60	165	37
ZD02-38.0-XP32-SP11-02	81	60	167	38
ZD02-39.0-XP32-SP11-02	83	60	169	39
ZD02-40.0-XP32-SP11-02	85	60	171	40
ZD02-41.0-XP32-SP14-02	87	60	173	41		SPMG140512	M5X10	T20
ZD02-42.0-XP32-SP14-02	89	60	175	42
ZD02-43.0-XP40-SP14-02	91	65	186	43	40
ZD02-44.0-XP40-SP14-02	93	65	188	44
ZD02-45.0-XP40-SP14-02	95	65	190	45
ZD02-46.0-XP40-SP14-02	97	65	192	46
ZD02-47.0-XP40-SP14-02	99	65	194	47
ZD02-48.0-XP40-SP07-04	101	65	196	48		SPMG07T308	M2.5X6	T8
ZD02-49.0-XP40-SP07-04	103	65	198	49
ZD02-50.0-XP40-SP07-04	105	65	200	50
ZD02-51.0-XP40-SP07-04	107	65	202	51
ZD02-52.0-XP40-SP09-04	109	65	204	52		SPMG090408	M3.5X8	T15
ZD02-53.0-XP40-SP09-04	111	65	206	53
ZD02-54.0-XP40-SP09-04	113	65	208	54
ZD02-55.0-XP40-SP09-04	115	65	210	55
ZD02-56.0-XP40-SP09-04	117	65	212	56
ZD02-57.0-XP40-SP09-04	119	65	214	57
ZD02-58.0-XP40-SP09-04	121	65	216	58
ZD02-59.0-XP40-SP09-04	123	65	218	59
ZD02-60.0-XP40-SP09-04	125	65	220	60
