High Speed Drill (2D - WC)

Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

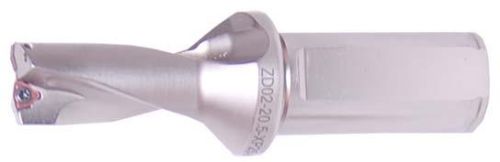

Get in touch with us for acquiring preeminent quality High Speed Drill! We are a top-notch Manufacturer, Exporter and Supplier of High Speed Drill (2D - WC) from China. The High Speed Drill that we offer comes with 2*D of WC insert along with little length to diameter ratio. Plus, its good rigidity and efficient processing have attracted so many buyers.

View More Details

Send Enquiry

Product Details

Graphical Image

Download Detail File : Click Here

Specifications:

Model	L1	L2	L	D	d	Applicable to Insert	Screw	Wrench
ZD02-14.0-XP25-WC03-02	33	56	106	14	25	WCMT030208	M2.5X6.5	T8
ZD02-15.0-XP25-WC03-02	35	56	108	15
ZD02-16.0-XP25-WC03-02	37	56	110	16
ZD02-17.0-XP25-WC03-02	39	56	112	17
ZD02-18.0-XP25-WC03-02	41	56	114	18
ZD02-19.0-XP25-WC03-02	43	56	116	19
ZD02-20.0-XP25-WC03-02	45	56	119	20
ZD02-21.0-XP25-WC04-02	47	56	121	21		WCMT040208
ZD02-22.0-XP25-WC04-02	49	56	123	22
ZD02-23.0-XP25-WC04-02	51	56	125	23
ZD02-24.0-XP25-WC04-02	53	56	127	24
ZD02-25.0-XP32-WC05-02	55	60	141	25	32	WCMT050308	M3X7	T8
ZD02-26.0-XP32-WC05-02	57	60	143	26
ZD02-27.0-XP32-WC05-02	59	60	145	27
ZD02-28.0-XP32-WC05-02	61	60	147	28
ZD02-29.0-XP32-WC05-02	63	60	149	29
ZD02-30.0-XP32-WC05-02	65	60	151	30
ZD02-31.0-XP32-WC05-02	67	60	153	31
ZD02-32.0-XP32-WC06-02	69	60	155	32		WCMT06T308	M3.5X8	T15
ZD02-33.0-XP32-WC06-02	71	60	157	33
ZD02-34.0-XP32-WC06-02	73	60	159	34
ZD02-35.0-XP32-WC06-02	75	60	161	35
ZD02-36.0-XP32-WC06-02	77	60	163	36
ZD02-37.0-XP32-WC06-02	79	60	165	37
ZD02-38.0-XP32-WC06-02	81	60	167	38
ZD02-39.0-XP32-WC06-02	83	60	169	39
ZD02-40.0-XP32-WC06-02	85	60	171	40
ZD02-41.0-XP32-WC06-02	87	60	173	41
ZD02-42.0-XP32-WC06-02	89	60	175	42
ZD02-43.0-XP40-WC08-02	91	65	186	43	40	WCMT080412	M4X10
ZD02-44.0-XP40-WC08-02	93	65	188	44
ZD02-45.0-XP40-WC08-02	95	65	190	45
ZD02-46.0-XP40-WC08-02	97	65	192	46
ZD02-47.0-XP40-WC08-02	99	65	194	47
ZD02-48.0-XP40-WC08-02	101	65	196	48
ZD02-49.0-XP40-WC08-02	103	65	198	49
ZD02-50.0-XP40-WC08-02	105	65	200	50
ZD02-51.0-XP40-WC08-02	107	65	202	51
ZD02-52.0-XP40-WC08-02	109	65	204	52
ZD02-53.0-XP40-WC08-02	111	65	206	53
ZD02-54.0-XP40-WC08-02	113	65	208	54
ZD02-55.0-XP40-WC08-02	115	65	210	55
ZD02-56.0-XP40-WC08-02	117	65	212	56
ZD02-57.0-XP40-WC08-02	119	65	214	57
ZD02-58.0-XP40-WC06-04	121	65	216	58		WCMT06T308	M3.5X8
ZD02-59.0-XP40-WC06-04	123	65	218	59
ZD02-60.0-XP40-WC06-04	125	65	220	60
ZD02-61.0-XP40-WC06-04	127	65	222	61
ZD02-62.0-XP40-WC06-04	129	65	224	62
ZD02-63.0-XP40-WC06-04	131	65	226	63
ZD02-64.0-XP40-WC06-04	133	65	228	64
ZD02-65.0-XP40-WC06-04	135	65	230	65
