HIgh Speed Drill ( 3D - WC)

Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

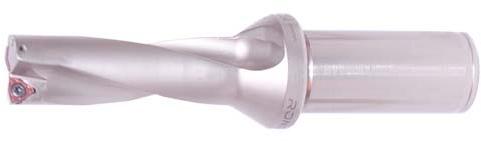

We are a trustworthy Manufacturer, Exporter and Supplier of High Speed Drill (3D - WC) from China. We are engaged in making available 3*D of WC insert of high speed drill that scores full when it comes to longevity and performance. Moreover, our High Speed Drill is rigid in construction and superb in performance.

View More Details

Send Enquiry

Product Details

Graphical Image

Download Detail File : Click Here

Specifications :

Model	L1	L2	L	D	d	Applicable to Insert	Screw	Wrench
ZD03-14.0-XP25-WC03-02	47	56	120	14	25	WCMT030208	M2.5X6.5	T8
ZD03-14.5-XP25-WC03-02	48.5	56	122	14.5
ZD03-15.0-XP25-WC03-02	50	56	123	15
ZD03-15.5-XP25-WC03-02	51.5	56	124	15.5
ZD03-16.0-XP25-WC03-02	53	56	126	16
ZD03-16.5-XP25-WC03-02	54.5	56	127	16.5
ZD03-17.0-XP25-WC03-02	56	56	129	17
ZD03-17.5-XP25-WC03-02	57.5	56	130	17.5
ZD03-18.0-XP25-WC03-02	59	56	132	18
ZD03-18.5-XP25-WC03-02	60.5	56	133	18.5
ZD03-19.0-XP25-WC03-02	62	56	135	19
ZD03-19.5-XP25-WC03-02	63.5	56	136	19.5
ZD03-20.0-XP25-WC03-02	65	56	139	20
ZD03-20.5-XP25-WC03-02	66.5	56	140	20.5
ZD03-21.0-XP25-WC04-02	68	56	142	21		WCMT040208
ZD03-21.5-XP25-WC04-02	69.5	56	143	21.5
ZD03-22.0-XP25-WC04-02	71	56	145	22
ZD03-22.5-XP25-WC04-02	72.5	56	148	22.5
ZD03-23.0-XP25-WC04-02	74	56	148	23
ZD03-23.5-XP25-WC04-02	75.5	56	149	23.5
ZD03-24.0-XP25-WC04-02	77	56	151	24
ZD03-24.5-XP25-WC04-02	78.5	56	152	24.5
ZD03-25.0-XP32-WC05-02	80	60	166	25	32	WCMT050308	M3X7	T8
ZD03-25.5-XP32-WC05-02	81.5	60	167	25.5
ZD03-26.0-XP32-WC05-02	83	60	169	26
ZD03-26.5-XP32-WC05-02	84.5	60	170	26.5
ZD03-27.0-XP32-WC05-02	86	60	172	27
ZD03-27.5-XP32-WC05-02	87.5	60	173	27.5
ZD03-28.0-XP32-WC05-02	89	60	175	28
ZD03-28.5-XP32-WC05-02	90.5	60	176	28.5
ZD03-29.0-XP32-WC05-02	92	60	178	29
ZD03-29.5-XP32-WC05-02	93.5	60	179	29.5
ZD03-30.0-XP32-WC05-02	95	60	181	30
ZD03-30.5-XP32-WC05-02	96.5	60	182	30.5
ZD03-31.0-XP32-WC05-02	98	60	184	31
ZD03-31.5-XP32-WC05-02	99.5	60	185	31.5
ZD03-32.0-XP32-WC06-02	101	60	187	32		WCMT06T308	M3.5X8	T15
ZD03-32.5-XP32-WC06-02	102.5	60	188	32.5
ZD03-33.0-XP32-WC06-02	104	60	190	33
ZD03-33.5-XP32-WC06-02	105.5	60	191	33.5
ZD03-34.0-XP32-WC06-02	107	60	193	34
ZD03-34.5-XP32-WC06-02	108.5	60	194	34.5
ZD03-35.0-XP32-WC06-02	110	60	196	35
ZD03-35.5-XP32-WC06-02	111.5	60	197	35.5
ZD03-36.0-XP32-WC06-02	113	60	199	36
ZD03-36.5-XP32-WC06-02	114.5	60	200	36.5
ZD03-37.0-XP32-WC06-02	116	60	202	37
ZD03-37.5-XP32-WC06-02	117.5	60	203	37.5
ZD03-38.0-XP32-WC06-02	119	60	205	38
ZD03-38.5-XP32-WC06-02	120.5	60	206	38.5
ZD03-39.0-XP32-WC06-02	122	60	206	39
ZD03-39.5-XP32-WC06-02	123.5	60	209	39.5
ZD03-40.0-XP32-WC06-02	125	60	211	40
ZD03-41.0-XP32-WC06-02	128	60	214	41
ZD03-42.0-XP32-WC06-02	131	60	217	42
ZD03-43.0-XP40-WC08-02	134	65	229	43	40	WCMT080412	M4X10
ZD03-44.0-XP40-WC08-02	137	65	232	44
ZD03-45.0-XP40-WC08-02	140	65	235	45
ZD03-46.0-XP40-WC08-02	143	65	238	46
ZD03-47.0-XP40-WC08-02	146	65	241	47
ZD03-48.0-XP40-WC08-02	149	65	244	48
ZD03-49.0-XP40-WC08-02	152	65	247	49
ZD03-50.0-XP40-WC08-02	155	65	250	50
ZD03-51.0-XP40-WC08-02	158	65	253	51
ZD03-52.0-XP40-WC08-02	161	65	256	52
ZD03-53.0-XP40-WC08-02	164	65	259	53
ZD03-54.0-XP40-WC08-02	167	65	262	54
ZD03-55.0-XP40-WC08-02	170	65	265	55
ZD03-56.0-XP40-WC08-02	173	65	268	56
ZD03-57.0-XP40-WC08-02	176	65	271	57
ZD03-58.0-XP40-WC06-04	179	65	274	58		WCMT06T308	M3.5X8
ZD03-59.0-XP40-WC06-04	182	65	277	59
ZD03-60.0-XP40-WC06-04	185	65	280	60
ZD03-61.0-XP40-WC06-04	188	65	283	61
ZD03-62.0-XP40-WC06-04	191	65	286	62
ZD03-63.0-XP40-WC06-04	194	65	289	63
ZD03-64.0-XP40-WC06-04	197	65	292	64
ZD03-65.0-XP40-WC06-04	200	65	295	65
