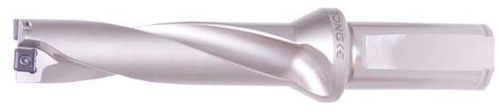

High Speed Drill (4D-SP)

Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

The High Speed Drill (4D-SP) that we manufacture is applauded by the buyers for its 4*D of SP insert of high speed. We are a top-notch Manufacturer, Exporter and Supplier of High Speed Drill (4D-SP) from China. Center outlet water is suggested to be used. Order retail or bulk, timely deliveries are performed.

View More Details

Send Enquiry

Product Details

Graphical Images

Download Detail File : Click Here

Specifications :

Model	L1	L2	L	D	d	Applicable to Insert	Screw	Wrench
ZD04-13.0-XP25-SP05-02	57	56	130	13	25	SPMG050204	M2X5	T6
ZD04-13.5-XP25-SP05-02	59	56	132	13.5
ZD04-14.0-XP25-SP05-02	61	56	134	14
ZD04-14.5-XP25-SP05-02	63	56	136	14.5
ZD04-15.0-XP25-SP05-02	65	56	138	15
ZD04-15.5-XP25-SP06-02	67	56	140	15.5		SPMG060204	M2.2X5
ZD04-16.0-XP25-SP06-02	69	56	142	16
ZD04-16.5-XP25-SP06-02	71	56	144	16.5
ZD04-17.0-XP25-SP06-02	73	56	146	17
ZD04-17.5-XP25-SP06-02	75	56	148	17.5
ZD04-18.0-XP25-SP06-02	77	56	150	18
ZD04-18.5-XP25-SP06-02	79	56	152	18.5
ZD04-19.0-XP25-SP06-02	81	56	154	19
ZD04-19.5-XP25-SP06-02	83	56	155	19.5
ZD04-20.0-XP25-SP06-02	85	56	159	20
ZD04-20.5-XP25-SP06-02	87	56	161	20.5
ZD04-21.0-XP25-SP06-02	89	56	163	21
ZD04-21.5-XP25-SP06-02	91	56	165	21.5
ZD04-22.0-XP25-SP07-02	93	56	167	22		SPMG07T308	M2.5X6	T8
ZD04-22.5-XP25-SP07-02	95	56	169	22.5
ZD04-23.0-XP25-SP07-02	97	56	171	23
ZD04-23.5-XP25-SP07-02	99	56	173	23.5
ZD04-24.0-XP25-SP07-02	101	56	175	24
ZD04-24.5-XP25-SP07-02	103	56	177	24.5
ZD04-25.0-XP32-SP07-02	105	60	191	25	32
ZD04-25.5-XP32-SP07-02	107	60	193	25.5
ZD04-26.0-XP32-SP07-02	109	60	195	26
ZD04-26.5-XP32-SP07-02	111	60	197	26.5
ZD04-27.0-XP32-SP07-02	113	60	199	27
ZD04-27.5-XP32-SP07-02	115	60	201	27.5
ZD04-28.0-XP32-SP09-02	117	60	203	28		SPMG090408	M3.5X8	T15
ZD04-28.5-XP32-SP09-02	119	60	205	28.5
ZD04-29.0-XP32-SP09-02	121	60	207	29
ZD04-29.5-XP32-SP09-02	123	60	209	29.5
ZD04-30.0-XP32-SP09-02	125	60	211	30
ZD04-30.5-XP32-SP09-02	127	60	213	30.5
ZD04-31.0-XP32-SP09-02	129	60	215	31
ZD04-31.5-XP32-SP09-02	131	60	217	31.5
ZD04-32.0-XP32-SP09-02	133	60	219	32
ZD04-32.5-XP32-SP09-02	135	60	221	32.5
ZD04-33.0-XP32-SP09-02	137	60	223	33
ZD04-33.5-XP32-SP09-02	139	60	225	33.5
ZD04-34.0-XP32-SP11-02	141	60	227	34		SPMG110408	M4X10
ZD04-34.5-XP32-SP11-02	143	60	229	34.5
ZD04-35.0-XP32-SP11-02	145	60	231	35
ZD04-35.5-XP32-SP11-02	147	60	233	35.5
ZD04-36.0-XP32-SP11-02	149	60	235	36
ZD04-36.5-XP32-SP11-02	151	60	237	36.5
ZD04-37.0-XP32-SP11-02	153	60	239	37
ZD04-37.5-XP32-SP11-02	155	60	241	37.5
ZD04-38.0-XP32-SP11-02	157	60	243	38
ZD04-38.5-XP32-SP11-02	159	60	245	38.5
ZD04-39.0-XP32-SP11-02	161	60	247	39
ZD04-39.5-XP32-SP11-02	163	60	249	39.5
ZD04-40.0-XP32-SP11-02	165	60	251	40
ZD04-41.0-XP32-SP14-02	169	60	255	41		SPMG140512	M5X10	T20
ZD04-42.0-XP32-SP14-02	173	60	259	42
ZD04-43.0-XP40-SP14-02	177	65	272	43	40
ZD04-44.0-XP40-SP14-02	181	65	276	44
ZD04-45.0-XP40-SP14-02	185	65	280	45
ZD04-46.0-XP40-SP14-02	189	65	284	46
ZD04-47.0-XP40-SP14-02	193	65	288	47
ZD04-48.0-XP40-SP07-04	197	65	292	48		SPMG07T308	M2.5X6	T8
ZD04-49.0-XP40-SP07-04	201	65	296	49
ZD04-50.0-XP40-SP07-04	205	65	300	50
ZD04-51.0-XP40-SP07-04	209	65	304	51
ZD04-52.0-XP40-SP09-04	213	65	308	52		SPMG090408	M3.5X8	T15
ZD04-53.0-XP40-SP09-04	217	65	312	53
ZD04-54.0-XP40-SP09-04	221	65	316	54
ZD04-55.0-XP40-SP09-04	225	65	320	55
ZD04-56.0-XP40-SP09-04	229	65	324	56
ZD04-57.0-XP40-SP09-04	233	65	328	57
ZD04-58.0-XP40-SP09-04	237	65	332	58
ZD04-59.0-XP40-SP09-04	241	65	336	59
ZD04-60.0-XP40-SP09-04	245	65	340	60
