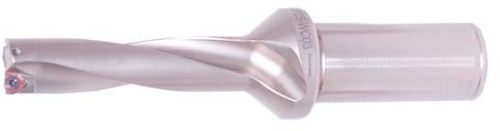

HIgh Speed Drill ( 4D - WC)

Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

The company stands tall in manufacturing, exporting and supplying superior quality High Speed Drill (4D - WC) to all the buyers. Ours is a 4*D of WC insert of high speed drill. It is suggested that center outlet water should be used with our High Speed Drill. Order retail or bulk, timely deliveries are performed.

View More Details

Send Enquiry

Product Details

Graphical Image

Download Detail File : Click Here

Specifications:

Model	L1	L2	L	D	d	Applicable to Insert	Screw	Wrench
ZD04-14.0-XP25-WC03-02	61	56	134	14	25	WCMT030208	M2.5X6.5	T8
ZD04-14.5-XP25-WC03-02	63	56	136	14.5
ZD04-15.0-XP25-WC03-02	65	56	138	15
ZD04-15.5-XP25-WC03-02	67	56	140	15.5
ZD04-16.0-XP25-WC03-02	69	56	142	16
ZD04-16.5-XP25-WC03-02	71	56	144	16.5
ZD04-17.0-XP25-WC03-02	73	56	146	17
ZD04-17.5-XP25-WC03-02	75	56	148	17.5
ZD04-18.0-XP25-WC03-02	77	56	150	18
ZD04-18.5-XP25-WC03-02	79	56	152	18.5
ZD04-19.0-XP25-WC03-02	81	56	154	19
ZD04-19.5-XP25-WC03-02	83	56	155	19.5
ZD04-20.0-XP25-WC03-02	85	56	159	20
ZD04-20.5-XP25-WC03-02	87	56	161	20.5
ZD04-21.0-XP25-WC04-02	89	56	163	21		WCMT040208
ZD04-21.5-XP25-WC04-02	91	56	165	21.5
ZD04-22.0-XP25-WC04-02	93	56	167	22
ZD04-22.5-XP25-WC04-02	95	56	169	22.5
ZD04-23.0-XP25-WC04-02	97	56	171	23
ZD04-23.5-XP25-WC04-02	99	56	173	23.5
ZD04-24.0-XP25-WC04-02	101	56	175	24
ZD04-24.5-XP25-WC04-02	103	56	177	24.5
ZD04-25.0-XP32-WC05-02	105	60	191	25	32	WCMT050308	M3X7	T8
ZD04-25.5-XP32-WC05-02	107	60	193	25.5
ZD04-26.0-XP32-WC05-02	109	60	195	26
ZD04-26.5-XP32-WC05-02	111	60	197	26.5
ZD04-27.0-XP32-WC05-02	113	60	199	27
ZD04-27.5-XP32-WC05-02	115	60	201	27.5
ZD04-28.0-XP32-WC05-02	117	60	203	28
ZD04-28.5-XP32-WC05-02	119	60	205	28.5
ZD04-29.0-XP32-WC05-02	121	60	207	29
ZD04-29.5-XP32-WC05-02	123	60	209	29.5
ZD04-30.0-XP32-WC05-02	125	60	211	30
ZD04-30.5-XP32-WC05-02	127	60	213	30.5
ZD04-31.0-XP32-WC05-02	129	60	215	31
ZD04-31.5-XP32-WC05-02	131	60	217	31.5
ZD04-32.0-XP32-WC06-02	133	60	219	32		WCMT06T308	M3.5X8	T15
ZD04-32.5-XP32-WC06-02	135	60	221	32.5
ZD04-33.0-XP32-WC06-02	137	60	223	33
ZD04-33.5-XP32-WC06-02	139	60	225	33.5
ZD04-34.0-XP32-WC06-02	141	60	227	34
ZD04-34.5-XP32-WC06-02	143	60	229	34.5
ZD04-35.0-XP32-WC06-02	145	60	231	35
ZD04-35.5-XP32-WC06-02	147	60	233	35.5
ZD04-36.0-XP32-WC06-02	149	60	235	36
ZD04-36.5-XP32-WC06-02	151	60	237	36.5
ZD04-37.0-XP32-WC06-02	153	60	239	37
ZD04-37.5-XP32-WC06-02	155	60	241	37.5
ZD04-38.0-XP32-WC06-02	157	60	243	38
ZD04-38.5-XP32-WC06-02	159	60	245	38.5
ZD04-39.0-XP32-WC06-02	161	60	247	39
ZD04-39.5-XP32-WC06-02	163	60	249	39.5
ZD04-40.0-XP32-WC06-02	165	60	251	40
ZD04-41.0-XP32-WC06-02	169	60	255	41
ZD04-42.0-XP32-WC06-02	173	60	259	42
ZD04-43.0-XP40-WC08-02	177	65	272	43	40	WCMT080412	M4X10
ZD04-44.0-XP40-WC08-02	181	65	276	44
ZD04-45.0-XP40-WC08-02	185	65	280	45
ZD04-46.0-XP40-WC08-02	189	65	284	46
ZD04-47.0-XP40-WC08-02	193	65	288	47
ZD04-48.0-XP40-WC08-02	197	65	292	48
ZD04-49.0-XP40-WC08-02	201	65	296	49
ZD04-50.0-XP40-WC08-02	205	65	300	50
ZD04-51.0-XP40-WC08-02	209	65	304	51
ZD04-52.0-XP40-WC08-02	213	65	308	52
ZD04-53.0-XP40-WC08-02	217	65	312	53
ZD04-54.0-XP40-WC08-02	221	65	316	54
ZD04-55.0-XP40-WC08-02	225	65	320	55
ZD04-56.0-XP40-WC08-02	229	65	324	56
ZD04-57.0-XP40-WC08-02	233	65	328	57
ZD04-58.0-XP40-WC06-04	237	65	332	58		WCMT06T308	M3.5X8
ZD04-59.0-XP40-WC06-04	241	65	336	59
ZD04-60.0-XP40-WC06-04	245	65	340	60
ZD04-61.0-XP40-WC06-04	249	65	344	61
ZD04-62.0-XP40-WC06-04	253	65	348	62
ZD04-63.0-XP40-WC06-04	257	65	352	63
ZD04-64.0-XP40-WC06-04	261	65	356	64
ZD04-65.0-XP40-WC06-04	265	65	360	65
