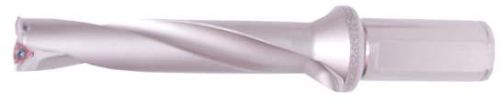

HIgh Speed Drill ( 5D - WC)

Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Contact us if looking for an efficient High Speed Drill! We are a known Manufacturer, Exporter and Supplier of High Speed Drill (5D - WC) all the way from China. We are offering 5*D of WC insert of high speed drill that is offered with high-pressure where the flow of coolant must be used during the process.

View More Details

Send Enquiry

Product Details

Graphical Image

Download Detail File : Click Here

Specifications :

Model	L1	L2	L	D	d	Applicable to Insert	Screw	Wrench
ZD05-14.0-XP25-WC03-02	75	56	148	14	25	WCMT030208	M2.5X6.5	T8
ZD05-14.5-XP25-WC03-02	77.5	56	150	14.5
ZD05-15.0-XP25-WC03-02	80	56	153	15
ZD05-15.5-XP25-WC03-02	82.5	56	155	15.5
ZD05-16.0-XP25-WC03-02	85	56	158	16
ZD05-16.5-XP25-WC03-02	87.5	56	160	16.5
ZD05-17.0-XP25-WC03-02	90	56	163	17
ZD05-17.5-XP25-WC03-02	92.5	56	165	17.5
ZD05-18.0-XP25-WC03-02	95	56	168	18
ZD05-18.5-XP25-WC03-02	97.5	56	170	18.5
ZD05-19.0-XP25-WC03-02	100	56	173	19
ZD05-19.5-XP25-WC03-02	102.5	56	174	19.5
ZD05-20.0-XP25-WC03-02	105	56	179	20
ZD05-20.5-XP25-WC03-02	107.5	56	181	20.5
ZD05-21.0-XP25-WC04-02	110	56	184	21		WCMT040208
ZD05-21.5-XP25-WC04-02	112.5	56	186	21.5
ZD05-22.0-XP25-WC04-02	115	56	189	22
ZD05-22.5-XP25-WC04-02	117.5	56	193	22.5
ZD05-23.0-XP25-WC04-02	120	56	194	23
ZD05-23.5-XP25-WC04-02	122.5	56	196	23.5
ZD05-24.0-XP25-WC04-02	125	56	199	24
ZD05-24.5-XP25-WC04-02	127.5	56	201	24.5
ZD05-25.0-XP32-WC05-02	130	60	216	25	32	WCMT050308	M3X7	T8
ZD05-25.5-XP32-WC05-02	132.5	60	218	25.5
ZD05-26.0-XP32-WC05-02	135	60	221	26
ZD05-26.5-XP32-WC05-02	137.5	60	223	26.5
ZD05-27.0-XP32-WC05-02	140	60	226	27
ZD05-27.5-XP32-WC05-02	142.5	60	228	27.5
ZD05-28.0-XP32-WC05-02	145	60	231	28
ZD05-28.5-XP32-WC05-02	147.5	60	233	28.5
ZD05-29.0-XP32-WC05-02	150	60	236	29
ZD05-29.5-XP32-WC05-02	152.5	60	238	29.5
ZD05-30.0-XP32-WC05-02	155	60	241	30
ZD05-30.5-XP32-WC05-02	157.5	60	243	30.5
ZD05-31.0-XP32-WC05-02	160	60	246	31
ZD05-31.5-XP32-WC05-02	162.5	60	248	31.5
ZD05-32.0-XP32-WC06-02	165	60	251	32		WCMT06T308	M3.5X8	T15
ZD05-32.5-XP32-WC06-02	167.5	60	253	32.5
ZD05-33.0-XP32-WC06-02	170	60	256	33
ZD05-33.5-XP32-WC06-02	172.5	60	258	33.5
ZD05-34.0-XP32-WC06-02	175	60	261	34
ZD05-34.5-XP32-WC06-02	177.5	60	263	34.5
ZD05-35.0-XP32-WC06-02	180	60	266	35
ZD05-35.5-XP32-WC06-02	182.5	60	268	35.5
ZD05-36.0-XP32-WC06-02	185	60	271	36
ZD05-36.5-XP32-WC06-02	187.5	60	273	36.5
ZD05-37.0-XP32-WC06-02	190	60	276	37
ZD05-37.5-XP32-WC06-02	192.5	60	278	37.5
ZD05-38.0-XP32-WC06-02	195	60	281	38
ZD05-38.5-XP32-WC06-02	197.5	60	283	38.5
ZD05-39.0-XP32-WC06-02	200	60	284	39
ZD05-39.5-XP32-WC06-02	202.5	60	288	39.5
ZD05-40.0-XP32-WC06-02	205	60	291	40
ZD05-41.0-XP32-WC06-02	210	60	296	41
ZD05-42.0-XP32-WC06-02	215	60	301	42
ZD05-43.0-XP40-WC08-02	220	65	315	43	40	WCMT080412	M4X10
ZD05-44.0-XP40-WC08-02	225	65	320	44
ZD05-45.0-XP40-WC08-02	230	65	325	45
ZD05-46.0-XP40-WC08-02	235	65	330	46
ZD05-47.0-XP40-WC08-02	240	65	335	47
ZD05-48.0-XP40-WC08-02	245	65	340	48
ZD05-49.0-XP40-WC08-02	250	65	345	49
ZD05-50.0-XP40-WC08-02	255	65	350	50
ZD05-51.0-XP40-WC08-02	260	65	355	51
ZD05-52.0-XP40-WC08-02	265	65	360	52
ZD05-53.0-XP40-WC08-02	270	65	365	53
ZD05-54.0-XP40-WC08-02	275	65	370	54
ZD05-55.0-XP40-WC08-02	280	65	375	55
ZD05-56.0-XP40-WC08-02	285	65	380	56
ZD05-57.0-XP40-WC08-02	290	65	385	57
ZD05-58.0-XP40-WC06-04	295	65	390	58		WCMT06T308	M3.5X8
ZD05-59.0-XP40-WC06-04	300	65	395	59
ZD05-60.0-XP40-WC06-04	305	65	400	60
ZD05-61.0-XP40-WC06-04	310	65	405	61
ZD05-62.0-XP40-WC06-04	315	65	410	62
ZD05-63.0-XP40-WC06-04	320	65	415	63
ZD05-64.0-XP40-WC06-04	325	65	420	64
ZD05-65.0-XP40-WC06-04	330	65	425	65
