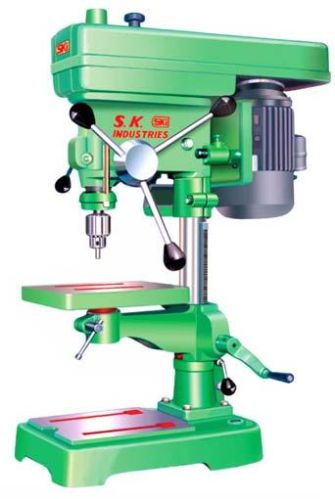

High Speed Drilling Machine

Supply TypeManufacturer, Supplier, Retailer
Preferred Buyer Location All over the world

We are actively engaged in manufacturing, supplying, and exporting High Speed Drilling Machine. We are based in Ahmedabad, Gujarat, India. These machines are precisely manufactured by our dexterous professionals, who meticulously abide by the latest industrial standards and norms. It is highly appreciated for its smooth functioning, robust structure, and long operational life. We offer our High Speed Drilling Machine at a highly reasonable rate.

View More Details

Send Enquiry

Technical Specifications :

Tapping Capacity	6 mm
No. Of Spindle Speed	5000 to 6000
Spindle Nose Taper	jacob 2 (1) taper
Spindle Center to Column	153 MM
Spindle Travel	65 MM
Maximum Distance Between Chuck To Table	135 MM
Maximum Distance Between Chuck To Base	360 MM
Working Surface To Base	208 x 192 MM
Working Surface To Table	210 x 207 MM
Column Diameter	47 MM
Base To Machine	320 x 235 MM
Overall Dimensions	840 x 320 x 560 MM
Motor Speed	2800 R.P.M.
Motor 3 Phase, induction, A.C.	0.37 KW. / 0.5 H.P.
Weight of machine	42 KG
