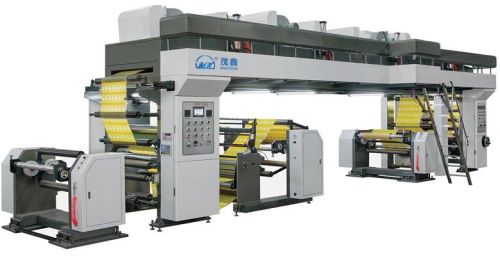

High-speed Dry Laminating Machine

Application
This machine is applicable to the BOPP.PET.CPP.PVC.PE paper, aluminum foil rolling material two layer or multi-layer, laminating to a kind of packaging material with the advantage such as high strength, high preservation, steam resistance and boil resistance.
Features
* Host reeling and coating, oven motor adopts frequency conversion motor. * Automatic PLC five motor tension control system. * Shaftless pneumatic conic node loading roller, convenient to replace the plate. * Dynamic balance aluminum alloy roller, sealed oven which is dry fast. Automatic constant temperature control system. * Independent turret type bidirectional rotary biaxial double station material receiving frame by LPC automatic correction. * Glue circulation system, pneumatic back press type moving scraper, pneumatic type loading and unloading shaft. * Laminating roller double oil circulation heating, uniform heating, accurate temperature control.
Main Technical Parameters：（Design and specifications are subject to change without notice.）
Model MXFH-A-600 MXFH-A-800 MXFH-A-1000
Width of laminating 600mm 800mm 1000mm
Laminating stratification 2 layers 2 layers 2 layers
Laminating speed 10-150mmin 10-150mmin 10-150mmin
Diameter of Roll material 650mm 650mm 650mm
Oven temperate 100℃ 100℃ 100℃
Total power 130kw 135kw 140kw
Weight 8T 10T 12T
Overall dimension 11.5×2.5×3.5m 11.5×2.7×3.5m 11.5×2.9×3.5m
