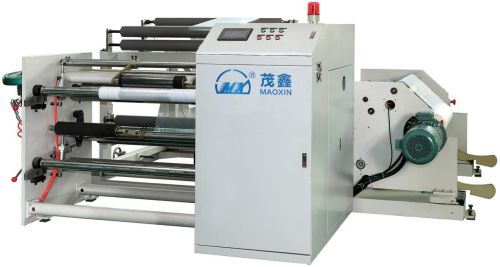

High Speed Film Folding Machine

We are offering high speed film folding machine.
* this is machine suitable for folding the bopp, cpp and pof film.
* the unwinding tension adopts vector inverter to control the speed and ac motor with encoder to feedback the speed.
* the center rewinder system is controlled by independent motor with double stations, it can folding the film both single or double pieces in one time.
Model mxdz+g-1300
max width of raw material 1250mm
max diameter of raw material 600mm
folding width of product 620mm
max folding diameter of product 450mm
line speed 450mmin
roller net length 1300mm
film thickness 12-50î¼m
machine size 3000x2800x1500mm
machine n.w 6t
