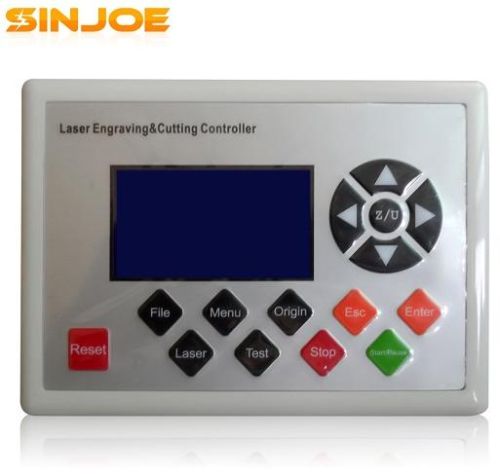

High Speed Laser Cutting Machine, High Speed Engraving Controller

Product name：High Speed Laser Cutting and Engraving Controller
Product Item:AWC-608
1. Product Description
Ÿ The most popular China DSP laser controller all over the world
Ÿ Has been used by more than 30 companies with OEM cooperation
Ÿ Advanced S-type calculation method, world class reacting and running speed
Ÿ Almost 0 maintenance rate,with CE and RoHS certificates.
Ÿ First class product with cheap price, high performance.Improve your laser cutting machine with less cost.
2. Features:
Power Supply
Motor
Specification
Max Coordinates
Laser Source Type
Laser Power
Application
DC 24V, 3A
Stepping Motor
X/Y/Z/U Axis
Accuracy
Verious AC/DC Excitation and RF
CO2 laser source
Solid medium
laser source
0-100％
Laser cutting machine,
Laser
engraving
machine, etc
Servo
Motor
Defined by customer
±0.001mm
0.01％
continuous
adjustment
1）High speed with good stability:
Ÿ High-speed control & computing core with super DSP technology 32-bit floating point. Max main frequency is up to 150MHz
Ÿ Anti-jamming OC (optical coupler) ensures the individual working state. It can be upgraded to the latest patch with U disk
Ÿ Advanced S-type accerlerating and decelerating calculation method, supply liens, arc & circle and B-type bar interpolation.
2) User-friendly designs:
Ÿ Network management and PC-communication Design
Ÿ Independently form PC With 128MB storage in main board
Ÿ Servo motor and stepping motor can be both connected with main board.
Ÿ Various laser source , from RF tube to CO2 glass tube, will be perfectly suitable for this controller.
Ÿ Different layers in one file, each layer can be changed individual.
Ÿ Multitasking one-stop finish ability.
Ÿ Widely files format support: BMP, GIF, JPEG, PCX, TGA, TIFF, PLT, CDR, DWG, DXF, DST, DSB and etc.
Ÿ USB 2.0 interface, you can use U disk to in and output information.
Ÿ Freely dispatch our computer laser controller system- LaserCAD, CorelDraw, and AutoCAD directly output software.
3) Attractive Crafts
Ÿ X/Y/Z/U axis can be in a high speed working state synchronously or independently. Z and U axis are idle and can be designed into auto-feeding system or up down table as you wish.
Ÿ Auto air blowing, auto focus, foot pedal switch , water protection.
Ÿ Software and hardware limit coordinate protection.
Ÿ Double laser head with independent power and working control.
4) Latest processing Technology:
Ÿ PPI LASER control method: to protect the perfect edge cutting effect (e.g. wood edge cutting will not be blacked out.). Also lengthen the lifespan of laser source.
Ÿ Cut box: set blank distance to make a great improvement for saving you materials and time.
Ÿ Smart budget: Graphics perimeter, total working time and once working cost.
Ÿ Divided cutting: Double head distance movement auto manage.
Ÿ Power outage continued engraving function: Auto saving the record of real-time working status. When power off suddenly, your machine can still continue working and finish the task after it is restarted.
Ÿ Classical graphics automatic processing function: with any angle, the edit line can be added by software, to ensure a better and flexible cutting & engraving effect. For small circles cutting will be quite outstanding.
3. Dimension
4. Warranty: 1 year.
5. Payment: T/T, Western Union，Paypal
6. Package:
Ÿ ≤ 5PCS: a white carton with EPE materials for 1-5 pcs orders by express.
EPE materials are at least 1cm thick to protect LCD panel and other parts from damage during transportation.
Ÿ ＞ 5 PCS: a bigger cube carton to save more express cost and full of EPE air Bubble to make sure the cargos are secured.
