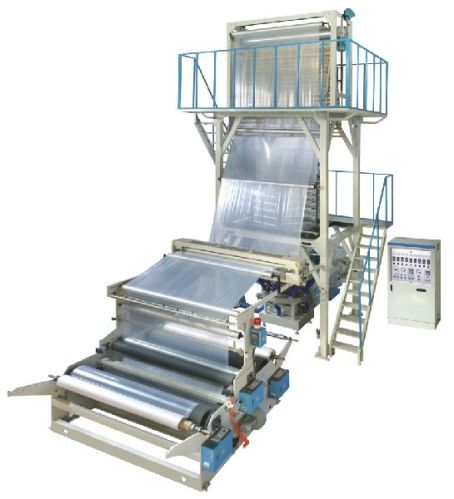

High Speed PE Film Blowing Machine

We have different model of blown film machine for HDPELDPE, to meet the need of different customers, models from SJ-50 with screw diameter of 50mm to make film width of 600mm, to SJ-120 with screw diameter of 120mm to make film width of 3000mm. Model SJ-120, the max. output can reach 220kgs, wide film is widely used for greenhouse in the field of agriculture. The machine can be equipped with automatic cutting equipment and automatic winder changer thus we can achieve the high speed of machine wording and save labor cost.   Model SJ-C75 SJ-C90 SJ-C105 SJ-C120 Screw Diameter 75mm 90mm 105mm 120mm Screw Ratio(LD) 28:1 28:1 28:1 28:1 Screw Speed 10-100rmin 10-100rmin 10-100rmin 10-100rmin Power of Main Motor 30-37Kw 37-45Kw 54-70Kw 70-90Kw Main Output 120kgh 160kgh 190kgh 220kgh Max. Folding Width of Film 1500mm 2000mm 2500mm 3000mm Single-sided Thickness of Film 0.01-0.10mm 0.01-0.10mm 0.01-0.10mm 0.01-0.10mm Total Power 46Kw 60Kw 78Kw 95Kw Weight of Machine 4T 8T 10T 12T Overall Dimensions 5200×2800×6000 6200×3400×8000 6200×4000×9000 6800×4500×10000
