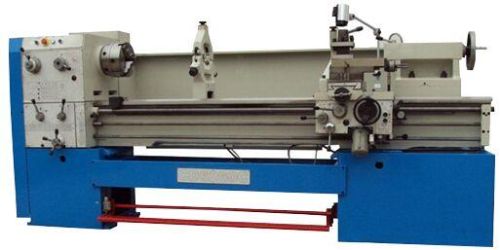

High Speed Precision Lathe Machine

Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Main features: Spindle bore Ф80mm, large flat structure, beautiful appearance, super audio quenching hardness greater than HB450, screw and light bar interlock and have to pass the overload....

View More Details

Send Enquiry

Company Information

Larosa Hardware & Equipment Co Ltd

sharjah

View Number

Member Since 13 Years
Nature of Business Supplier
Year of Establishment 2000

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Main features:

Spindle bore Ф80mm, large flat structure, beautiful appearance, super audio quenching hardness greater than HB450, screw and light bar interlock and have to pass the overload protection device, hardened gears by REISHAUER precision grinding, balancing the spindle assembly, a variety of options: metric, inch, right-hand wheel, a variety of voltage, frequency, and can carry the "CE" requirements of the guards, fast-forward devices.

STANDARD ACCESSORIES:

3-jaw chuck 250mm,
Driving plate,
Center & center sleeve,
Oil gun,
Wrenches,
Operation manual

OPTIONAL ACCESSORIES:

Steady rest,
Follower rest, 4-jaw chuck 320mm,
Face plate,
Thread dial
longitudinal automatic trip, live center,
Quick change tool post
Taper copy ruler,
4-position longitudinal automatic trip

Model		CD6240C	CD6250C	CD6260C	CD6266C
CAPACITY	Max. swing over bed	400mm	500mm	600mm	660mm
	Max. swing over cross slide	325mm	325mm	360mm	400mm
	Max. swing over gap	550mm	630mm	730mm	790mm
	Effective length of gap	260mm
	Center Distance	1000/1500/2000/3000mm
	Bed Width	330mm
HEADSTOCK	Spindle hole	80mm
	Spindle nose	ISO-D8
	Spindle taper	Metric 85mm
	Spindle speed(Number)	(15steps)24-1600rpm
FEEDS	Longitudinal feeds range	66kinds 0.072-4.038mm/rev
	Cross feeds range	66kinds 0.036-2.019mm/rev
	Metric threads range	66kinds 0.5-28mm
	Inch threads range	66kinds 1-56inch
	Moudle threads range	33kinds 0.5-3.5mπ
	Diametral threads range	33kinds 8-56D. P
CARRIAGE	Max. travel of top slide	130mm
	Max. travel of cross slide	300mm
	Max. size of toolshank	25*25m 2
TAILSTOCK	Dia. of tailstock sleeve	65mm
	Taper of tailstock sleeve	MT5
	Max. travel of tailstock	120mm
MOTOR	Main drive motor	5.5KW		7.5KW
	Rapid traverse motor	250W
	Coolant pump motor	125W
PACKING LWH	Center Distance(1000mm)	245115175cm
	Center Distance(1500mm)	295115175cm
	Center Distance(2000mm)	345115175cm
	Center Distance(3000mm)	445115175cm
N. W/G. W	Center Distance(1000mm)	1650/2050kg	1700/2100kg	1800/2200kg	1900/2300kg
	Center Distance(1500mm)	1850/2250kg	1900/2300kg	2000/2400kg	2100/2500kg
	Center Distance(2000mm)	2000/2400kg	2050/2450kg	2150/2550kg	2250/2650kg
	Center Distance(3000mm)	2150/2550kg	2200/2600kg	2300/2700kg	2400/2800kg
