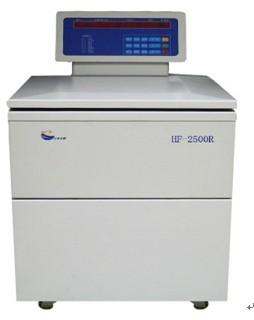

High Speed Refrigerated Centrifuge

We are offering high speed refrigerated centrifuge.
model: hf-2500r/hf-2500rc
max. Rcf: 64800*g
max. Speed: 25000r/min
noise: ≤75dba
max. Capacity: 4*1000ml, 24x1.5/2.2ml, 10x 5ml, 16x 10ml, 8x 50ml, 6x 250ml,
6x 500ml, 4x 750ml, 4×2x 96 hole, 1000ml, 3000ml
power: ac220v 50hz
power consumption drive: 2.2kw
power consumption refrig: 1.5kw
dimension: 1200*720*820mm
net weight: 290kg
time range: 0~99min
speed accuracy: ±50r/min
temperature arange:-20℃～+40℃
rotors are for available for your choice. Please contact us freely.
features:
1. Ce,1s09001 certification.
2. Computer control, high precision.
3. Adopt advanced cpu control system, microcontroller can control speed, time, temperature and relative centrifugal force.
4. Maintenance-free variable frequency motor speed is more precisely, lifting speed. Step by centrifugal speed and centrifugal force adjusted to 10mg/10×g.
5. Efficient use of fluorine-free import of high-refrigeration unit systems, environmental compliance, temperature control range of -20℃～+40℃, in the stationary state can also be pre-cooling of the rotor.
6. Rotor with super-hard alloy with a special process, with unlimited high-temperature sealing performance and disinfection functions.
7. Stainless steel cavity, solid construction, suitable for continuous use, inflatable spring, easy open lid, locking lid to ensure safety of automated.
8. Using strong flexible drive shaft to run quiet, durable, more resistant to the imbalance.
9. With a door cover protection, speed, super-mild unbalance protection, can process real-time monitoring of the centrifuge to ensure the safe operation of equipment.
10. With the spare sealed-angle rotor, swing-out rotor(biosafa rotor), which can prevent the worker from the pollution of samples.
11. 10 stalls landing speed, the program can be compiled, can be saved, it is desirable.
hf-2500r hf-2500rc rotor parameter:
rotor type rotor no. capacity (ml) max speed (r/min) max rcf (xg) test tube type
angle
rotor 2501 24x1.5/2.2ml
10x 5ml 25000 64800 pc pp pe
angle
rotor 2502 16x 10ml 23000 60460 pc pp pe
angle rotor 2503 8x 50ml 18000 35047 pc pp pe
angle rotor 2504 6x 250ml 14000 30070 pc pp pe
angle rotor 2505 6x 500ml 10000 18000 pp pe
angle rotor 2506 4x 1000ml 8000 12040 pp pe
angle rotor 2507 4x 750ml 5000 5470 pp pe
microplates rotor 2508 4×2x 96 hole 4000 3040 elisa version
rotor type rotor no. capacity (ml) max speed (r/min) max rcf (xg) standard flow material
continuous rotor 2509 1000ml 14000 21500 200-600ml/min aluminum
continuous rotor 2510 3000ml 8000 9500 200-800ml/min aluminum
continuous rotor 2511 1000ml 16000 21800 200-600ml/min titanium
continuous rotor 2512 3000ml 10000 14800 200-800ml/min titanium.
