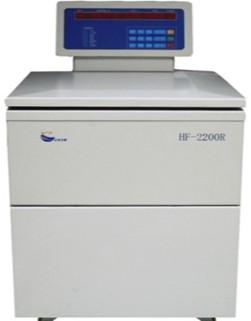

High-speed Refrigerated Centrifuge

We are offering high-speed refrigerated centrifuge.
model: hf-2200r
max. Rcf: 52000*g
max. Speed: 22000r/min
noise: ≤65dba
max. Capacity: 6*600ml, 36x1.5/2.2ml, 16x 5ml, 16x 10m, 12x 20ml, 18x 10ml,
8x 50ml, 32x 15ml, 96x 10ml, 72x 15ml, 4x 50ml, 8x 96 hole
power: ac220v 50hz
power consumption drive: 2.2kw
power consumption refrig: 1.2kw
dimension: 1200*720*820mm
net weight: 260kg
time range: 0~99min
speed accuracy: ±50r/min
temperature arange: -20℃～+40℃
rotors are for available for your choice. Please contact us freely.
features:
1. Ce,1s09001 certification.
2. Computer control, high precision.
3. Adopt advanced cpu control system, microcontroller can control speed, time, temperature and relative centrifugal force.
4. Maintenance-free variable frequency motor speed is more precisely, lifting speed. Step by centrifugal speed and centrifugal force adjusted to 10mg/10×g.
5. Efficient use of fluorine-free import of high-refrigeration unit systems, environmental compliance, temperature control range of -20℃～+40℃, in the stationary state can also be pre-cooling of the rotor.
6. Rotor with super-hard alloy with a special process, with unlimited high-temperature sealing performance and disinfection functions.
7. Stainless steel cavity, solid construction, suitable for continuous use, inflatable spring, easy open lid, locking lid to ensure safety of automated.
8. Using strong flexible drive shaft to run quiet, durable, more resistant to the imbalance.
9. With a door cover protection, speed, super-mild unbalance protection, can process real-time monitoring of the centrifuge to ensure the safe operation of equipment.
10. With the spare sealed-angle rotor, swing-out rotor(biosafa rotor), which can prevent the worker from the pollution of samples.
11. 10 stalls landing speed, the program can be compiled, can be saved, it is desirable.
comply with ce safety certification, and iso9001 quality system certification.
hf-2200r rotor parameter:
rotor type rotor no. capacity (ml) max speed (r/min) max rcf (xg) test tube type
angle rotor 2201 36x1.5/2.2ml
16x 5ml
16x 10ml 22000/
21000 52000/
50400 pc pp pe
angle rotor 2202 12x 20ml 16500 31100 pc pp pe
angle rotor 2203 18x 10ml 21000 50400 pc pp pe
angle rotor 2204 8x 50ml 18000 35047 pc pp pe
angle rotor 2205 6x 70ml 15000 25700 pc pp pe
angle rotor 2206 6x 300ml 11000 19650 pp pe
angle rotor 2207 6x 500ml 10000 18000 pp pe
angle rotor 2208 6x 50ml 20000 43000 pc pp pe
angle rotor 2209 8x 100ml 14000 26952 pp pe
angle rotor 2210 6x 250ml 14000 30677 pp pe
angle rotor 2211 12x 15ml 16000 30940 pp pe
angle rotor 2212 6x 600ml 7000 9100 pp pe
swing-out rotor 2213 4x 750ml 4200 4150 pp pe
swing-out rotor 2214 4x 500ml 5000 4390 pp pe
swing-out rotor 2215 8x 50ml 5000 4390 pc pp pe
swing-out rotor 2216 32x 15ml 5000 4390 pc pp pe
swing-out rotor 2217 96x 10ml 5000 4390 pc pp pe
swing-out rotor 2218 72x 15ml 5000 4390 pc pp pe
swing-out rotor 2219 4x 50ml 10000 16500 pc pp pe
swing-out rotor 2220 8x 96 hole 4000 2236 elisa version
rotor type rotor no. capacity (ml) max speed (r/min) max rcf (xg) standard flow material
continuous rotor 2221 1000ml 14000 21500 200-600ml/min aluminum
continuous rotor 2222 3000ml 8000 9500 200-800ml/min aluminum
continuous rotor 2223 1000ml 16000 21800 200-600ml/min titanium
continuous rotor 2224 3000ml 10000 14800 200-800ml/min titanium.
