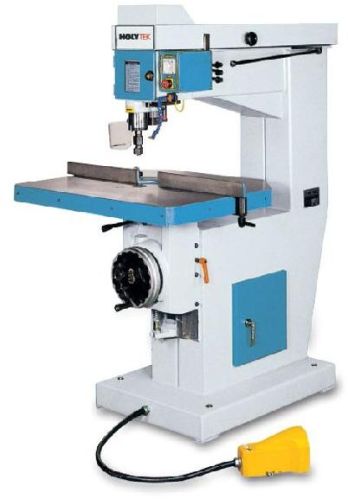

High Speed Routers

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Features The modern pneumatic High Speed Router attachment HYDRAULIC STABILIZER assure easy, smooth cutting. Mechanical brake for spindle to save the waiting time and emergency stop.

View More Details

Send Enquiry

Company Information

Wood Tech, Bangalore

Peenya, Bangalore, Karnataka

View Number

Member Since 8 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Model	HR-5	HR-7	HR-750
Throat clearance	500 mm.	650 mm.	750 mm.
Spindle speed	10,000 / 20,000 r.p.m.	10,000 / 20,000 r.p.m.	10,000 / 20,000 r.p.m.
Spindle motor	3 HP	5 HP	5 HP (7 1/2 HP optional)
Vertical stroke of spindle	100 mm.	100 mm.	100 mm.
Clearance between chuck and table	150 mm.	300 mm.	285 mm.
Depth end stops	6	6	6
Table size	610 x 460 mm.	750 x 600 mm.	905 x 765 mm.
Packing dimensions	1,060 x 710 x 1,150 mm.	1,400 x 900 x 1,800 mm.	1,055 x 1,530 x 1,830 mm.
N.W. / G.W.	280 / 350 kgs.	500 / 650 kgs.	650 / 800 kgs.
