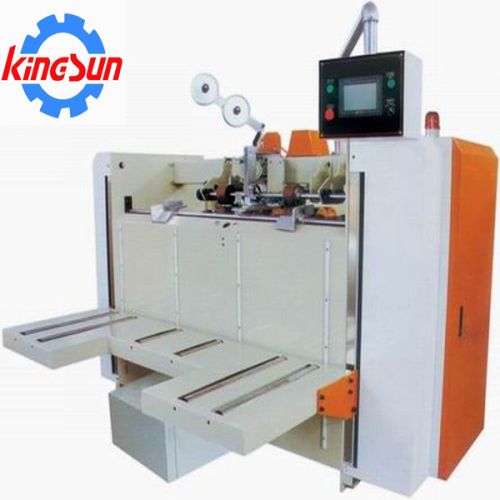

High Speed Semi-auto Carton Box Stitching Machine

We are offering high speed semi-auto carton box stitching machine.
usage and characteristics
independent control for front and rear feeding wheels offer auto-feed and push in control types to fit different product. A patent feeding wire device can smooth and indeed to feed wire. Double linkages stitching head makes by special alloy steel with precise grinding. That is less requiring to lubricate and easy to maintain. New designing for stopper device outstands before limit. That can do special box without cover or just short cover.
1. It can do single nail , double nail and strengthen nail complete in one time, be suitable for different customer requirements.
2. Quickly size changing in one minute, can be operated easily and no need professional experience.
3. Automatic counting device in feeding section, output when piling into a bundle and prepare for binding.
4. Human interface for adjusting, convenient and fast.
5. Automatic counting in back part, the finishes products can be sent separately to the end of machine according to the set number(1-99).
6. Only need two persons for operation from the semi-finished products to the finished products output. Simple operation and reduction of salary.
model
bzd
speed
400nial/min
number of nails
1-99
nail space
30-120mm(adjust on touching screen)
horse power
6hp
nail class
single / double nail and strengthen nail ( finish in one time)
weight
2000kg
min. Paper size
300*606
fixed cardboard
3/5 corrugated cardboard
max. Paper size
1515*2460
wire size
17 # flat yarn(2.0*0.75)
piling height on the table
900mm
