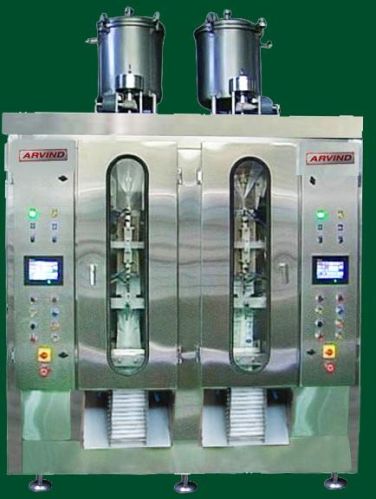

High Speed Servo Milk Packing Machine

We satiate the demand for High Speed Servo Milk Packing Machine, from anywhere across the globe, with the finest of such kind. We are bracketed with the premier Manufacturers, Exporters, and Suppliers of High Speed Servo Milk Packing Machines from Andhra Pradesh, India. We are equipped with latest machinery and skilled manpower to come up with highly efficient Milk Packing Machines. And their most of the features are adjustable.

Details :

• It is a new resolution in Milk packaging, which is accurate and high in speed
• It is a Servo-Driven High-Speed Mechanical Machine.
• The machine is interfaced with Individual Servo motors for both Vertical & Horizontal sealing assemblies and Pouch Pulling.
• Machine function is controlled by HMI Touch Screen.
• The machine is specially designed to increase the production with saving of time, Power and space occupancy.

Salient Features :

• Machine body and all contact parts are of S.S 304 Construction
• In-build Electrical Control Panel
• Twin Head construction with independent Head operation
• Flexibility to pack 2 different products at a time
• Simple mechanical Design with less mechanical linkages resulting in less wear & tear and thereby reducing maintenance cost.
• U.V Sterilization of film
• Easy & Quick changeover to different sizes
• Increase in production with less power Consumption

List Of Accessories Required :

• Water Cooler- Delivery Rate : 200 Liters/hour @ 5°C

• Voltage Stabilizer-

  • Type : SERVO
  • Rating : 20 KVA, 3 Phase (For 2 Machines)



Technical Specification :

• Product - Milk/Butter/lassi any free flowing liquids.
• Operate Mechanism - Servo Driven Reduction Gear Box
• Feeding System - Gravity Flow
• Filling Range - 200/500/1000ml.
• Out put/ Min - 70 – 80 /Minute/Head for 500 ml
• Film Width - 322 ± 1MM.
• Film Type - 40 to 50 microns of 5/7/9 multi layer film.
• Sealing - Impulse Type,Vertical Over Lap/Horizondal Round Import.
• Filling accuracy - ± 0.5%
• Power supply -  415V, 3 phase.
• Power consumption - 4.5 KW/ Hour.
• Cooling Water required  - 200 Liters./hour @  5°C .
• Machine body constructions - 18 SWG (1.2mm.) Stainless Steel AISI 304
