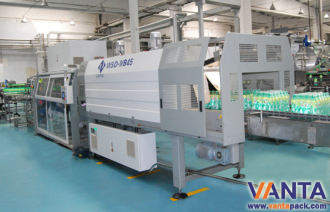

High Speed Shrink Film Wrapping Machine, Brand Name : VANTA

We are offering high speed shrink film wrapping machine.
Technical specification
1.wsd-lmb25 basic specification description
1.1 capacity：25 packs per minute
1.2 packing：film only
1.3 bottle dividing: cylinder type
1.4 bottle shape：
（1）glass bottle, pet bottle and can etc. Diameter: ø55~110mm
（2） bottle height: h80~320mm（notice：each bottle diameter and height difference±2mm, otherwise thought as another bottle size）
1.5 pack size
（1） l210~450mm
（2） w120~300mm
（3） h80~330mm
1.6 machine dimensions：
a. Main machine： 8090mm*1650mm*2600mm（l*w*h）
b. Infeed conveyor l1500mm，w730mm
1.7 total power： 45 kw
1.8 control power：24v dc
1.9 compressed air （a）pressure：0.4~0.8mpa （b）air consumption：100lmin
1.10 weight：5t
1.11 floor load ： ∽8 x 7500 n
1.12 horizontal angle ： ± 1°
1.13 noise : ≤ 85 db
2. Electric configuration:
2.1 power supply： 380v（max.±10%）50hz 3ph+pe
2.2 low pressure control： 24vdc
2.3 electric cabinet protection grade: ip54
2.4 sensor : sick
2.5 hmi : b&r
2.6 control system：b&r control system
2.7 motor: sew
2.8 inverter: danfoss
2.9 other electric parts protection grade no less than ip54
2.10 pneumatic components: festo
4. Working environment
4.1 temperature：min.+10 º c –max.+45 º c，fluctuations in daily working ±3 º c
4.2 humidity：max.90%。
4.3 product temperature: min.10 º c
4.4 set according to attitude of 800 meter
5.film specifications
5.1. Material：high density polyethylene heat shrink film hdpe, transparent or little bit ivory-white.
5.2. Thickness：0.06~0.08 +-20% mm ；
5.3. Density：0.928gcm3 ；
5.4. Anti-static additive: ‹10kv;
5.5. Max. Film roll diameter: less than 500mm;
5.6. Film core diameter: 76mm
5.7. Transverse shrinkage: 70~80 %
5.8. Longitudinal shrinkage: 10~20 %
5.9. Anti-cutting: longitudinal 28nmm2 ; transverse 21nmm2
5.10. Anti-twisting: longitudinal 14nmm2 ; transverse 14nmm2
5.11. Max. Extensibility: longitudinal 450% ; transverse 650%
5.12. Anti-tearing: longitudinal 350g; transverse 500g
5.13. Joint temperature: 130~160 º c.
