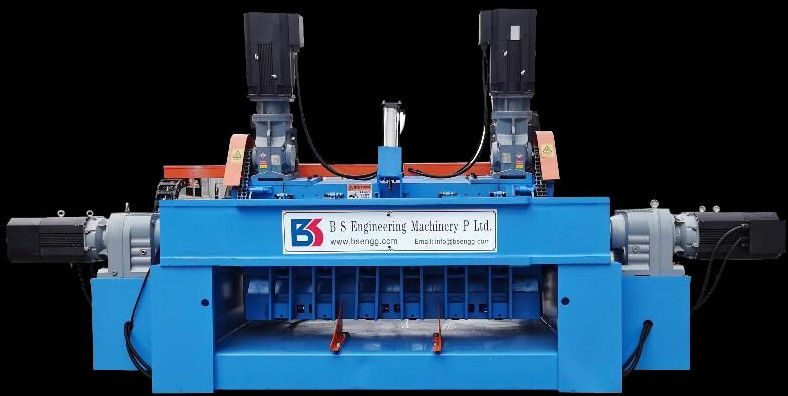

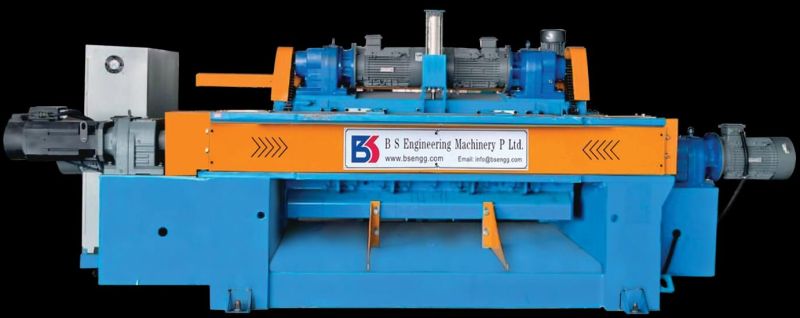

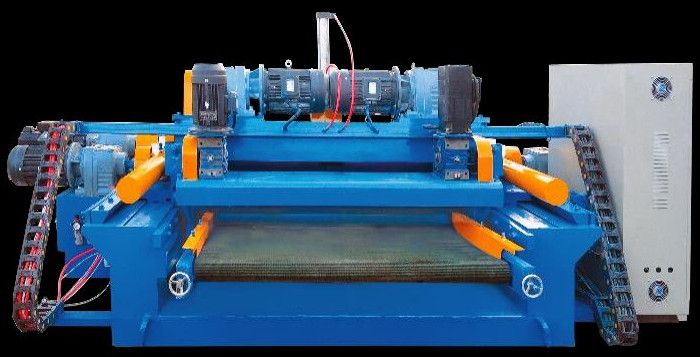

Automatic High Speed Spindleless Peeling Machine, Color : Blue

Automatic GradeAutomatic
CertificationCE Certified
Number Of FlowerHigh Speed Spindleless Peeling Machine
Country of OriginIndia
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Salient Features • Heavy duty Core Veneer Spindle-less peeling Machine for up to 500mm Dia Log with All SERVO Motor Design. • Diamond cut Cross Roller for small left-over. • High Peeling....

View More Details

Send Enquiry

Company Information

B.S. Engineering Machinery Private Limited

Birati, Kolkata, West Bengal

4.0/5

(1)

View Number

Member Since 8 Years
Nature of Business Manufacturer
Year of Establishment 1953

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Salient Features

• Heavy duty Core Veneer Spindle-less peeling Machine for up to 500mm Dia Log with All SERVO Motor Design.

• Diamond cut Cross Roller for small left-over.

• High Peeling Speed (Adjustable 45 – 1 50 Meter / Minute) along with uniform veneer thickness.

• Adjustable Scoring Knives, can be adjusted for 3 different veneer width sizing.

• Knife Head slides on Oli Bed for accurate movement.

• 90 mm dia Lead Screw along with Brass Nut, Gives accurate feeding and uniform veneer thickness and long life of machine.

• Left-over core Dropping System.

• Rotary Cutter Driven by Servo Motor for Accurate Veneer Cutting.

Technical Data

Description	High Speed Peeling
Length of the Roller (mm)	1500
Power of Double Roller (Kw)	15KW X 2 (Servo Motor)
Power of Single Roller (Kw)	15KW X 2 (Servo Motor)
Power of Screw Feed (Kw)	7.5KW X 1(Servo Motor)
Power of Rotary Clipper (Kw)	2.2KW X 1 (Servo Motor)
Power of Rubber Roller (Kw)	2.2KW X 1 (Servo Motor)
Total Power (Kw)	71.9KW
