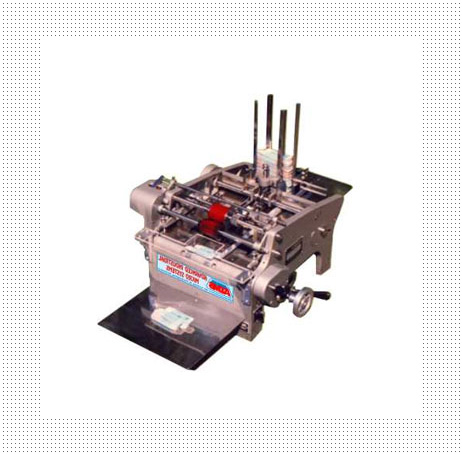

Contact SupplierHigh Speed Stacking Carton Coder Model SCC – 300 – C for registered high quality multi-line overprinting of B.No., Mfg. Date, Exp. Date, MRP `, etc. on only cartons (lock bottom also) of size 75 X 75 to 300 X 200 mm. The cartons are stacked on the vertical guides (Dispenser), automatically dispensed one-by-one by Pusher below, picked up by the pick-up rubber to feed to the printing roller via guide track and timing chain & stacked back in the collection tray automatically at speeds up to 250 per minute. (Free accessories include ½ Kg. Paste Ink, 1 Lit. Solvent & 2 mm Flat Rubber Character Set). This Coder is widely used in the Pharmaceutical & Food Industries for printing large quantities of Open Flap & Lock Bottom type Laminated Cartons.
Supple Voltage | Cartons / Labels / Pouches* |
Substrate | Cartons (Open Flap or Lock Bottom) |
Substrate size | 75 X 75 mm to 300 X 200 mm |
Printing Area | 6 to 8 Lines (50 X 200 mm.) |
Prints using | Easily Changeable flat, rubber / nylon stereos |
Printing Speed | 125/180/250 imprints / min. |
Printing Medium | Rechargeable liquid ink cartridge / Lapping roller for paste |
Inking Medium | Rechargeable liquid ink cartridge / Lapping roller for paste |
Impressions | 10,000 per 10 gms. Paste |
Machine Size | 870 L X 765 W X 625 H |
Weight | 125 Kgs net. 175 Kgs gross. |
