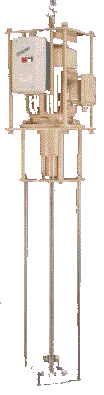

High Speed Stirrer

High20
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

This type of machine consist of a motor of reputed make.All contact parts will comprise of S.S 304 material. It will have a protecting cage with two 20 mm bar held apart by closing flat....

View More Details

Send Enquiry

Company Information

Abigain Enterprises

Kalyan West, Thane, Maharashtra

View Number

Member Since 13 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

This type of machine consist of a motor of reputed make.
All contact parts will comprise of S.S 304 material. It will have a protecting cage with two 20 mm bar held apart by closing flat ring clamping on to the bar. The shaft will be coupled directly to the motor shaft. An extra bearing on the coupling sleeve will be provided to reduce the load on the motor bearing. lt will consist of an impeller of special design.

We also make a wide range of mixers suitable for your products.
* Sigma Kneaders * Ribbon Blenders * Attritors * Pug Mixers
* Hydraulic Dissolver * Planetary Mixers * Batch type Sand Mills
* Conical Blenders * Continuous type Sand Mills * Resin Plants * Bead Mills * Turnkey Projects
APPLICATIONS:
* Varnishes & Paints * Polyurethanes * Colourants * Inks * Foods
* Resins, Glues, Adhesives * Pharmaceutical Products * Chemicals * Lacquers * Cosmetics

AES 0.5 H.P	AES 5 H.P.	AES 20 H.P.
AES 1 H.P.	AES 7.5 H.P.	AES 25 H.P.
AES 2 H.P.	AES 10 H.P.	AES 30 H.P.
AES 3 H.P.	AES 15 H.P.	AES 50 H.P.

TYPE	H.P.THREE PHASE	MIXING LENGTH IN MM	IMPELLER DIA MM		CAPACITY IN LTS VISCOCITY
			1440	2880	CAPACITY IN LTS VISCOCITY
			R.P.M		LOW	High
AES 1	1	915	125	90	100	20
AES 2	2	915	125	100	150	40
AES 3	3	915	150	100	250	50
AES 5	5	915	150	125	350	100
AES 7.5	7.5	1080	175	150	600	150
AES 1 0	10	1080	225	150	1000	200
AES 1 5	15	1080	225	175	1250	250
AES 20	20	1350	250	200	1500	300
AES 25	25	1350	300	225	2000	400
AES 30	30	1350	325	225	2500	500

AES 0.5 H.P	AES 5 H.P.	AES 20 H.P.
AES 1 H.P.	AES 7.5 H.P.	AES 25 H.P.
AES 2 H.P.	AES 10 H.P.	AES 30 H.P.
AES 3 H.P.	AES 15 H.P.	AES 50 H.P.

Specifications

TYPE	H.P.THREE PHASE	MIXING LENGTH IN MM	IMPELLER DIA MM		CAPACITY IN LTS VISCOCITY
			1440	2880	CAPACITY IN LTS VISCOCITY
			R.P.M		LOW	High
AES 1	1	915	125	90	100	20
AES 2	2	915	125	100	150	40
AES 3	3	915	150	100	250	50
AES 5	5	915	150	125	350	100
AES 7.5	7.5	1080	175	150	600	150
AES 1 0	10	1080	225	150	1000	200
AES 1 5	15	1080	225	175	1250	250
AES 20	20	1350	250	200	1500	300
AES 25	25	1350	300	225	2000	400
AES 30	30	1350	325	225	2500	500
