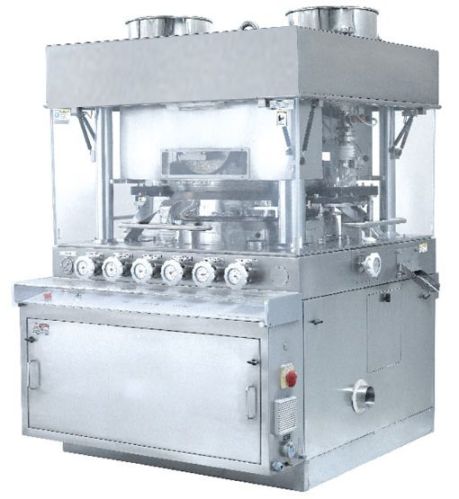

High Speed TAbleting

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

A high output (suitable for large batch production more than half a million tablets/hr. max.) double sided tablet press with pre-compression and hydraulic power pack and auto lubrication, designed....

View More Details

Send Enquiry

Company Information

Cemtech Pharma Machinery

Vatva, Ahmedabad, Gujarat

5.0/5

(1)

View Number

Member Since 8 Years
Nature of Business Manufacturer
GST No. 24AALFC9885C1Z6

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Ability to incorporate so many customized functions and features. The CTP-12 is available with a choice of turret having 51,61,75,81 stations to give higher output.

The basic objectives while designing/producing this Ulti Press are what our customers i.e. You want and Customization Philosophy.

Features

Advanced Double Sided High Speed Tableting machine for large batch production
In compliance with cGMP guidelines
Higher output up to 583,200 Tab/hr*. (max)
Excellent accessibility for quick cleaning
Front controls
Main motor & force feeder motor driven through ACVFD
Force feeder drive from bottom
Improve tablet quality due to pre-compression system
Hydraulic Power Pack system
Auto Lubrication
Upper punch penetration
Safety interlocking for upper guards
PLC system (optional)
SCADA system with computer interface (optional)
Hydro-Pneumatic system (optional)

MODELS	CPMD-51	CPMB-61	CPMBB-75	CPMBB-81
Tooling	“D”	“B”	“BB”	“BB”
No. of Stations	51	61	75	81
Max. Output (Tab/hr)*	367,200	439,200	540,000	583,200
Max. Pressure	10 Ton	6.5 Ton	6.5 Ton	6.5 Ton
Pre-Compression	1 Ton	1 Ton	1 Ton	1 Ton
Upper punch penetration	3 to 6 mm	3 to 6 mm	3 to 6 mm	3 to 6 mm
Max. Tablet Dia	25 mm	16 mm	11 mm	11 mm
Max. Depth of Fill	20 mm	17mm	17mm	17mm
Main Motor	12.5 HP	12.5 HP	12.5 HP	12.5 HP
Force feeder	0.5 HP	0.5 HP	0.5 HP	0.5 HP
Electrical supply**	15 HP, 3 Ø, A.C.	15 HP, 3 Ø, A.C.	15 HP, 3 Ø, A.C.	15 HP, 3 Ø, A.C.
