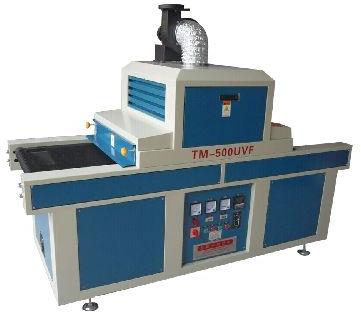

High Speed UV Dryer Machine Suit For Heidelberg Printing Machine

₹ 3.26 Lakh / Set

MOQ1 Piece(s)
Brand NameLuen Cheong (LC)
CertificationCE Certificate
ConditionNew
Emitting ColorMulti-color
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Company Information

Member Since 14 Years
Nature of Business Manufacturer
Year of Establishment 1991

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Number Of FlowerHigh speed UV dryer machine suit for Heidelberg printing machine
Brand NameLuen Cheong (LC)
CertificationCE Certificate
Country of Origin380V
ConditionNew
Total Carbohydrate1 Year
After-Sales Service ProvidedEngineers available to serive oversea
Emitting ColorMulti-color
Availability380kg
Power(W)7.5kw
Dimension(L*W*H)500*100*2000mm

This machine use for connect with offset presses for paper UV cure, such as Heidelberg, Roland, Komori, Ryobi offset press, etc

UV curing machine supporting offset printing must meet to UV lamp curing temperature should not exceed 45 ° C, it does not make prints telescopic deformation, curing speed must reach 9000 / hour

Conventional UV lamp of UV curing machine using a high-temperature low-intensity UV light, the light of print solid temperature reaches 70 ° C to 90 ° C, UV curing speed 4000 -5000 / hour, if just increasing UV lamp power to reach the speed of UV curing, UV curing temperature will rise exponentially, unable to meet the stringent process requirements offset printing,

Dedicated high-speed UV curing machine use of imported low-temperature high-intensity UV lamp which is a high purity using a light emitting electrode, filled with high-purity exact proportion of glowing gas, via technology to produce high-pressure mercury lamp, with small working current, low temperature, high strength performance

Parameter

Product name	High speed UV dryer machine suit for Heidelberg printing machine
Model No	TM-500UVF-B
Certificate	CE, ISO-9001-2000
Brand Name	LC,China
Description	This machine use for connect with offset presses for paper UV cure, such as Heidelberg, Roland, Komori, Ryobi offset press, etc UV curing machine supporting offset printing must meet to UV lamp curing temperature should not exceed 45 ° C, it does not make prints telescopic deformation, curing speed must reach 9000 / hour Conventional UV lamp of UV curing machine using a high-temperature low-intensity UV light, the light of print solid temperature reaches 70 ° C to 90 ° C, UV curing speed 4000 -5000 / hour, if just increasing UV lamp power to reach the speed of UV curing, UV curing temperature will rise exponentially, unable to meet the stringent process requirements offset printing, Dedicated high-speed UV curing machine use of imported low-temperature high-intensity UV lamp which is a high purity using a light emitting electrode, filled with high-purity exact proportion of glowing gas, via technology to produce high-pressure mercury lamp, with small working current, low temperature, high strength performance This UV lamp than common UV lamp temperature less than 40%, the UV lamp intensity more than 100%
Advantage	1.good Teflon belt which can bear the high temperature 2.add 1 set intensive air cooling extraction controlled with thermostat 3.install a vacuum suction system internal the tunnel very very strong for the conveyor
Parameter	Condition: New Type: UV curing machine Place of Origin: Guangdong, China (Mainland) Brand Name: LC Model Number: TM-500UVF-B Voltage: AC380V Power(W): 7.5kw Dimension(LWH): 5001002000mm Weight: 380kg Certification: CE Warranty: one year After-sales Service Provided: Engineers available to service machinery overseas standard: CE,ISO-9001-2000 Brand: LC,China Warranty: 1 year
Usage	Application area : uv curing ,uv shine coating ,UV oven
Shipping way	By sea, by air, by express
Delivery time	Within 40 days from the receipt of payment
Loading seaport	Shenzhen or Hong Kong, China
package	Plywood case
Price term	FOB Shenzhen, CFR, CIF, FCA, EXW etc
Payment term	100% T/T in advance(negotiation)
