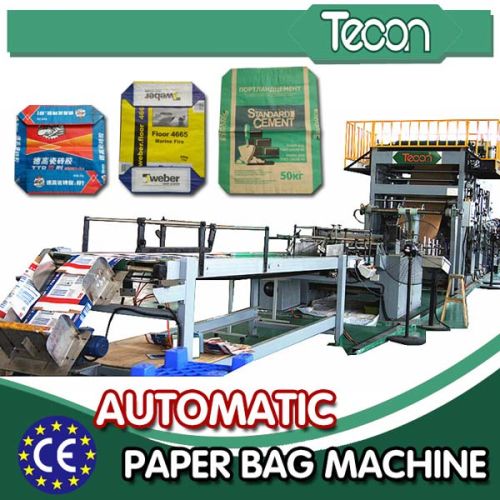

High-speed Valve Paper Sack Production Line

We offer high-speed valve paper sack production line.
foshan tecon package machinery co.,ltd is a high-tech equipment manufacturer. We designed first production line for paper bag 20 years ago, that is about 1996, and now we are listed in the world top three in this industry and the only one in china able to disign & manufacture the whole production line of bottom sealed paper bag.
the leading product of our company is the "high-speed automatic bottom-pasted bag making machine". It is composed of a tuber machine and a bottomer machine.
features of our full-automatic paper bag production line:
1.flat & glued bottom with filling valve;
2.different types for cement, chemicals, foods, tea, etc.
3.4-color automatic printing
4.2~4 paper layers, with one extra pepp film available
5.35~50 million bagsyear
6.servo system control or plc control available, integrated with photoelectric & pneumatic control system, siemens electrical system
7.full technical service for installation, training and maintenance
8.full solution for factory construction and materials purchase.
technical parameters of our production line:
zt9804 tuber machine
operating condition
working hour 22 hoursday
design temperature 0~40
design humidity max. 95%
number required 1 unit
model name zt9804
performance
speed 130~150 tubesmin(depends on paper quality, number of ply and operators' skill.)
tube length 670~1035 mm
tube width 420~600 mm
space between tape steps 20 mm
tube cut length 670~1035mm
number of ply 2~4 paper + 1 pppe(please specify if you need paper bag with pp film)
diameter of print roller 144~314 mm
printing width 1300 mm(max)
paper reel width 860~1260 mm
paper reel diameter max. 1, 300 mm
air consumption 1,100lmin
main drive motor 30kw
size of whole set 34.3m*2.4m*2.7m( l*w*h)
total weight 30 t
if you are interested in our products, please do not hesitate to contact us.
