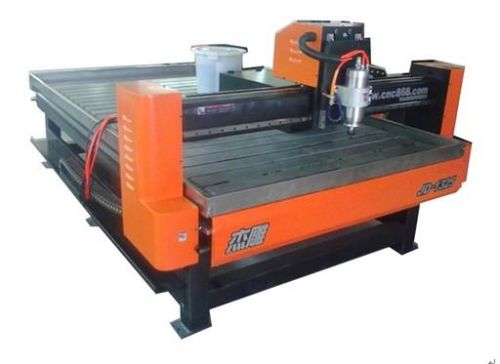

High Speed Woodworking Engraving Machine, Brand Name : JD

We are offering high speed woodworking engraving machine.
Features:\r1. Jd high speed advertising engraving machine can cut acrylic of thickness 10mm at the speed of 18m per minutes, thickness of 20mm at speed of 8m per minutes, it also can cut 8mm copper sheet, 5mm aluminum sheet, strong and powerful. \r2.y axis is driven by double motors that improve the vibration resistance greatly, and also decrease the gantry distortion possibilities. The spindle speed also is improved about 20%, efficiency is equivalent to 3-5 sets other equipments.\r3. Aligning tools automatically, easy to find the materials origin point.\r4.the processing speed and cutting speed can be adjusted in the process.\r5.smart 3d numerical control function to realize effective cutting and engraving.\r6. Massive command memory capacity to accelerate the processing speed.\r7.the materials can be moved during the whole procedure to increase processing efficiency .\r\r\rapplication:\rthis machine is widely to process any woody products, pcb, acrylic, sign boards, bill plates, metal foil molds, construction molds, instrument, industrial moulds, any metal or non-metal material can be processed, such as iron, copper, aluminum, plastic plates and wood.\r\r\r\rparameters:\rmodel jd-1313 jd-1318 jd-1325\rmaterial size 1600×1800 mm 1600×2200 mm 1600×3000 mm \reffective working area 1300×1300 mm 1300×1800 mm 1300×2500 mm\rspeed 0.5 - 300mm/second\rz axis >150mm\rsetting accuracy 0.025mm\rcommand format artisman gl3, hpgl 2d,3d\rmemory not limited\rinterface standard pci\rvoltage ac 220v/50hz\rspindle 1500w(other types are optional)\rcnc controller 500 w \roperating environment temp 5-30 degree/humidity 35-75%（rh） \r\rmachine maintenance:\r1. Everyday the continuous working time can not exceed 10 hours, ensure cooling water clean and circulating, please change the water frequently to lower temperature. If the weather temperature is too low, antifreeze fluid can be replaced.\r2. Each time after using machine, operators should pay attention to clean the table timely, be sure the platform and drive system no dust. Lubricated the three axis regularly.(attention: if the temperature is too low in winter, ball screw or guide rail shall be flushed clean by gasoline, then add oil. Otherwise, the machine won’t work caused by transmission parts obstructed.\r3. Please turn off power supply before taking maintenance treatment, make sure the controller indicator light is off.
