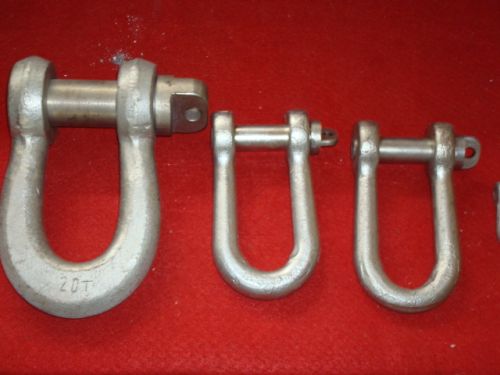

High Strength Anchor Shackle

High Strength Anchor Shackle Uses: Used to connect the steel wire rope or cargos loading. Stringing Equipment High Strength Shackle 1. Rated load: 10~300kN2. Weight: 0.15~7.5kgs3. Material: High strength Steel Parameter: Product No. Model Main Size (mm) Rated Load(KN) Weight(KG) A B C D 10292 GQX-10 57 78 12 20 10 0.18 10293 GQX-20 65 95 16 22 20 0.31 10294 GQX-30 88 120 20 34 30 0.61 10295 GQX-50 100 135 22 36 50 0.96 10296 GQX-100 140 190 32 46 100 3.3 10297 GQX-160 155 220 37 56 160 4.9 10298 GQX-200 165 250 39 60 200 5.2 10299 GQX-300 187 290 50 68 300
