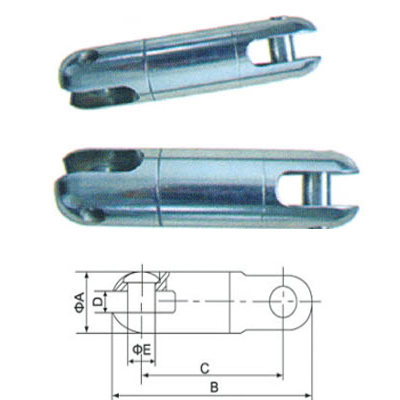

High Strength Swivel Joint The swivel joints are suitable to connect the pulling rope to the mesh sock joint mounted on the conductor, they are mounted on thrust bearings and they are designed to avoid torsion stain accumulation. They are made of highly tensile galvanized steel, the special design can bear the high radial loads, which occur during the passage over the pulleys. Features: 1) Used for attaching and pulling steel ropes 2) Constructed of highest quality steel 3) Short and light with contoured nose to allow easy passage through sheaves 4) Swivel design, tension stringing, avoids torsional strain accumulation that may damage conductors. Product No. Model Main size (mm) Rated Load (KN) Weight (kg) A B C D E 10272 XYL-5 19 61 40 8 9 5 0.2 10273 XYL-10 35 100 70 12 13 10 0.4 10274 XYL-30 37 129 95 16 16 30 0.65 10275 XYL-50 42 154 116 18 17 50 1.5 10276 XYL-80 57 220 165 24 22 80 2.4 10277 XYL-130 62 248 192 26 24 130 3.5 10278 XYL-180 75 294 222 26 26 180 7.2 10279 XYL-250A 85 331 251 30 30 250 10.6 10280 XYL-250B 80 323 243 30 30 250 8 10281 XYL-320 85 346 264 38 30 320 9.7
