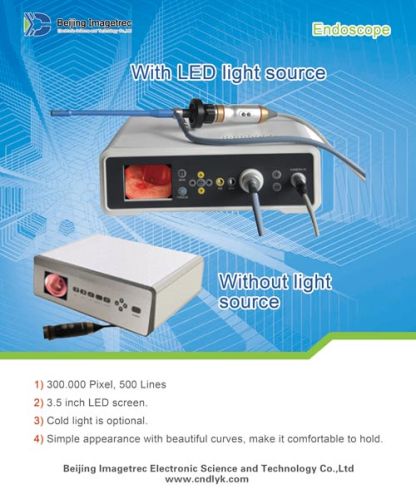

AKX High Tech Endoscope, Packaging Type : White

We are offering high tech endoscope.
Endoscope data
1. Description
1) 300.000 pixel, 600 lines2) competitive price with high quality3) cold light source4) small size
5) simple appearance with beautiful curves, make it comfortable to hold.
6) 3.5 inch led screen.
7) light is optional
2. Specifications
endoscope camera specification
sensor 1/3" sony super had ccd ii
tv system ntsc/pal
effective pixels ntsc : 768(h) x 494(v) / pal : 752(h) x 582(v)
horizontal resolution 500tv lines
scanning system 2:1 interlace
o.s.d available
dynamic range 52db（*128）
snr more than 50db /agc off/ dss off
video output 1.0v pp composite (75 oh m )
minimum illumination 0.0002 lux / f2.0
osd(optional) display alc,esc
acuity adjustable
shutter speed 1/60(1/50) a.flk，1/250~1/12000，fix x12~x2
white balance awb,atw,awc-push,manual
background light supplement
off,drc,blc,hlm
automatic gain control (agc)
off,on(low,middle,high)
3-dnr 0~6 step
digital zoom off,x1.0~x255
sdn auto.ext,color,b/w
motion detection off,on(192 zones)
privacy mask off,on(8 area)
cam-id 20 digits,60 characters
mirror image off,mirror,flip,still,digital zoom,
sharpness,saturation
language english,chinese
power supply 80ma 12v dc
lens 2.97/3.6/3.7/6mm pinhole lens
weight 150g
size 22(w)x67（l）x20（h）
light source specification
led 80w
luminous flux (do not contain fiber) 1800 im
the best matching optical fiber effective aperture 5mm
numerical aperture 0.6
luminous flux (the best matching optical fiber) 700 im
illuminance 80000 ix
colour temperature 5000k~6500k3
color rendering index 70
spectral range 400nm~700nm
brightness adjusting range 10%~100%continuing adjust
size 95*105*130mm( width*high*length)
weight 1.1kg.
