High Temperature CCTV

Description

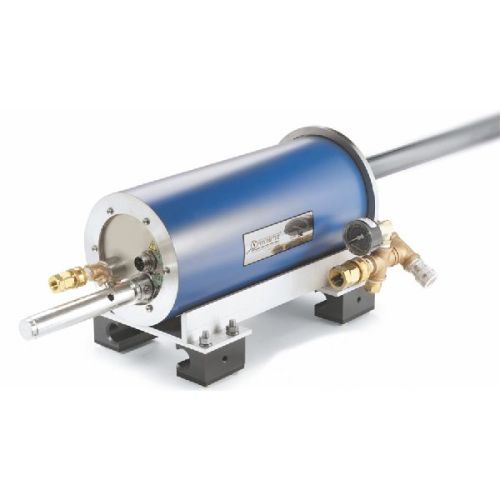

The IST-Quadtek® Spyrometer3, with its patented combination of a color video camera and a scanning pyrometer, gives the operator the ability to see process conditions while measuring the temperature of virtually any area in the field of view. The M555 imaging pyrometer takes the video image and the temperature information, multiplexes it and sends it, via coaxial cable, to the image processor in the control room and displays it on a VGA monitor. On-screen temperature measurement data is also accessible through 4-20mA outputs which can easily be interfaced to yourcontrol system.

• FEATURES

• M555 Imaging Pyrometer Camera is used for industrial processes where video and temperature information are both essential
• It is available in two options. It measures higher temperatures from 848-1816°C (1558-3301°F) and lower temperature from environments of 663°C-1255°C (1225°F-2291°F)
• Ability to see process conditions while measuring the temperature of virtually any area inthe field of view
• The imaging pyrometer takes the video image and the temperature information, and sends it, via a single coaxial cable,and displays it on a VGA Monitor
• On-screen temperature measurement data is also accessible through 4-20mA outputs whichcan easily be interfaced to your control system
• Useful in Rotary Kilns, Clinker Coolers, Fossil Utility Boilers, Steel Reheat Furnaces

• SPECIFICATIONS

• APPLICATIONS

• Rotary Kilns: Monitor cement and lime kiln product and temperatures. See potential kiln upsets early. Interface temperatures to your DCS
• Glass: View for flame impingement and product flow. Accurately measure refractory temperatures
• Fossil Utility Boilers: Observe flame shape and temperature of each burner. Assign a temperature cursor to each flame to aid in controlling NOx levels
• Steel Reheat Furnaces: See areas of non-uniform heating and adjust product speed or combustion accordingly. Position temperature cursors to accommodate size and shape of the load
• Cement Clinker Coolers: Monitor the cooler for red rivers and upset conditions. Optimize cooling patterns by measuring clinker temperature on the first grate. Aids in reducing equipment breakdown and refractory degradation. Obtain continuous visual of clinker depth and reaction to grate speed changes.
• Copper Casting Wheels: Optimize metal flow to the casting mold while monitoring from the control room. Measure temperature of metal in casting spoons
