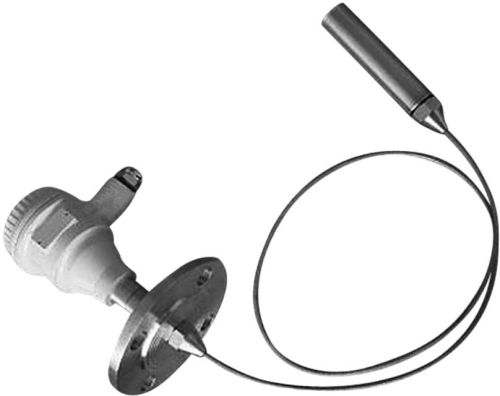

High Temperature Guide Pressure Liquid Level Transmitter

We offer High Temperature Guide Pressure Liquid Level Transmitter.
Features:
Unique design,pressure guide structure;
Particularly suitable for small and medium scale level and corrosive liquid;
Good stability,superior to 0.2%FSyear
Suitable for high temperature：-30～250℃;
Field adjustment of zero point and the full range;
Intrinsically safe explosion-proof;
Applications:
The oil industry, chemical industry,Electric power.
Hydraulic pressure system,Pneumatic system;
Energy and Water treatment system.
Automation equipment;
Industrial process control ;
Performance parameters
Range（m）0~20
Output signal:4~20mA、0~5V、0-10V
Accuracy(%FS): ≤0.1 ≤0.25 ≤0.5
Nonlinearity(%FS: ≤0.1 ≤0.25 ≤0.5
Hysteresis (%FS):≤0.1 ≤0.25 ≤0.5
Repeatability(%FS): ≤0.1 ≤0.25 ≤0.5
Zero drift(%FS℃): ≤0.02
Temperature drift(%FS):≤0.02
Stability(%FSYear): ≤0.25
Working voltage(V):12~36V DC(Standard:24V)
Working temperature(℃):-20~85℃
Overload capacity(%):300
Life span:more than 9 million times pressure cycle
Load resistance(Ω):750
Response time (ms):≤1
Measurement of medium:Mediums compatible with 316L
Diaphragm material:316L
Housing material:cast aluminum
Protection grade:IP68
Weight: 950g
