High Temperature Muffle Furnace

Supply TypeManufacturer, Exporter
Preferred Buyer Location All over the world

LABIN Box Furnace is the choice of Research and Development Laboratories that need a reliable, Energy-efficient, Accurate and Automatic Furnaces for a wide range of applications such as ash....

View More Details

Send Enquiry

Product Details

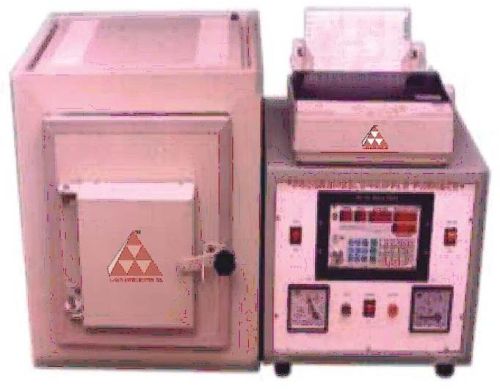

LABIN Box Furnace is the choice of Research and Development Laboratories that need a reliable, Energy-efficient, Accurate and Automatic Furnaces for a wide range of applications such as ash determination, heat treating, fusions, glass and enamel tests, drying precipitates etc.

The furnace is insulated with Ceramic Fiber Blanket of high density for better insulation. It can run continuously at the given working temperature, trouble free. The furnace is quick heating type, light in weight, table-mounting type, and compact and elegant in design.

The hinged type door is insulated with ceramic fiber to avoid heat loss from the door. The furnace is fitted with Digital Temperature Controller-cum-Indicator to avoid over heating for long life and trouble free working. Separate control panel will be provided.

Precise Control (Optional) :

PID Controller which displays both set and accurate temperature and include one ramp to set point
Programmer : Microprocessor Based Programmer
Computer Interfacing : Computer Interfacing is also available with RS-232

Specifications

Heating Elements	Kanthal A-1/Silicon Carbide
Thermocouple	CRAL or PT-PT/RH-13%
Temp. Range	1200°C to 1550 °C
Safety Features	Thermocouple Break Protection designed to switch off furnace power in the event of thermocouple becoming open circuit.
Standard Control	Automatic On/Off Electronic Digital Temp. Controller-cum- Indicator
Power Saver	Consumes 30% less power as compared to other Furnaces of this type.

The economical easy to use space age High Temperature Furnaces that's accurate and efficient.
High Temperature Muffle Furnaces can be manufactured starting from 1200°C to 1550°C
We can manufacture any Type/Size Custom Built High Temperature Muffle Furnace.
