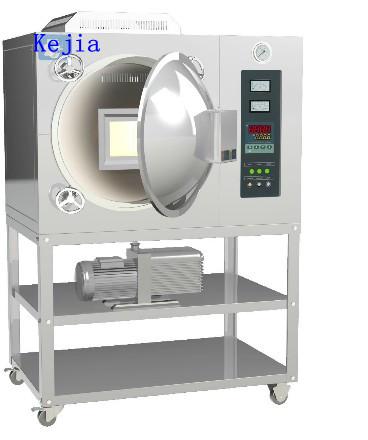

High Temperature Vacuum Heat Treatment Furnace

We are offering high temperature vacuum heat treatment furnace.
model: kj-1200vfkj-1600vf vacuum furnace
size(mm, wxhxd): 150x150x150 (6"x6"x6") 200x200x200 (8"x8"x8").
features
1. In kj-1200vf, operation temperature: 1100℃,(1200℃ for short time);
in kj-1600vf, operation temperature: 1500℃,(1600℃ for short time);
2. Maximum energy efficiency is achieved by surrounding the chamber with thermal-efficient alumina fiber ceramic insulation.
3. heavy duty double layer structure with cooling fan. Lower teperature in outside case.
4. Pid automatic control via current limiting phase angle fired the resistor, e.g. Scr(silicon controlled rectifier).
5. Power control with 30 segments programmable.
6. Widely used in the heat treatment of metallic material in coarse vacuum, in reducibility or protective atmosphere.
7. Can also be used for special heat treatment of materials, such as carbon products in the development process of carbonation.
descriptions
model kj-1200vf kj-1200vf kj-1600vf kj-1600vf
working temp. 1100℃ 1100℃ 1500℃ 1500℃
max. Temp. 1200℃ 1200℃ 1600℃ 1600℃
temp. Accuracy +-1℃ +-1℃ +-1℃ +-1℃
chamber (mm,wxhxd) 150x150x150 200x200x200 150x150x150 200x200x200
heating element resistance wire resistance wire mosi2 rods mosi2 rods
final vacuum 15pa 15pa 15pa 15pa
pressure rising rate ≤10-20pah ≤10-20pah ≤10-20pah ≤10-20pah
max. Power 3kw 7kw 4kw 8kw
package: plastic paper inside, polyfoam filled, wooden box outside.
payment: tt, west union, etc.
shipping and delivery: by airsea, in 15 days after receiving the payment
warranty: 1 year limited warranty on all electronic parts.
