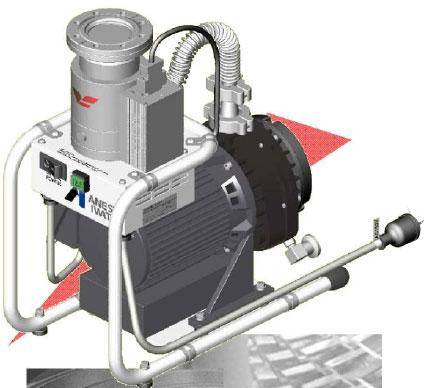

High Vacuum Pumping System

Are you in search of High Vacuum Pumping System? Then we are the right choice. We are a prominent Manufacturer, Supplier and Exporter of the High Vacuum Pumping Systems are eco-friendly and easy to maintain. We offer High Vacuum Pumping System with a compact design and easy to handle. When compared to Diaphragm pump, our High Vacuum Pumping System ensures smooth and fast operations.
Applications :

• Mass spectroscope
• Surface analyzer
• X-ray analyzer
• Laboratory use
• Accelerator
• Synchrotron radiation facility
• Leak test
• Glove box
• Roughing pump for TMP
• Electron Microscope

Features :

• Clean Discharge and Vacuum
• This high vacuum pumping system is completely dry system because it consists of oil-free Scroll Vacuum Pump (ISP) and Turbo Molecular Pump (TMP)
• Compact Design : Since this pumping system is compact design and footprint is minimized, it can be installed near your vacuum system. It is easy to move.
• Handling : Its controller has two ways to start to run TMP, manually or automatically*. It can be chosen by the application and preference.

In the case of automatic start, it is restricted by volume of chamber and pipes
Precaution Of Usage :
This pumping system is suitable for clean process only. Do not use explosive, flammable, toxic or corrosive substances or substances which contain chemicals, solvents or particles. We will not perform maintenance work on pumps which have used hazardous substances. Use at ambient operation temperature in the range of 5 ^oC to 30 ^oC.
