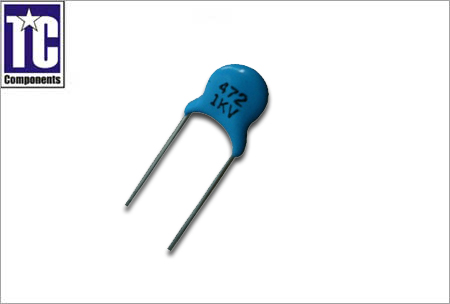

High Voltage Capacitors

Listing ID #3989456

Get Latest Price

CapacitanceWithin the specified tolerance at 1KHz±20%, 1.0±0.2Vrms
(IR) Insulation Resistance10000MΩ min at 500VDC and 1 minute electrification
Dissipation Factor (DF)Y5P, Y5U, Z5U; DF=2.0%, BN: DF=0.5% Y5V, Z5V; DF=3.5% at 1KHz±20%, 1.0±0.2Vrms
Rated Voltage1KV to 6KV
Supply Type Manufacturer, Exporter, Supplier

Preferred Buyer From : All over the world

View More Details

Send Enquiry

Product Details

(IR) Insulation Resistance 10000MΩ min at 500VDC and 1 minute electrification
Capacitance Tolerance K:±10%, M:±20%, Z: +80% -20%
Operating Temp. Range Y5P, Y5U, Y5V -25? to +85?, Z5U,Z5V +10? to +85?
Dissipation Factor (DF) Y5P, Y5U, Z5U; DF=2.0%, BN: DF=0.5% Y5V, Z5V; DF=3.5% at 1KHz±20%, 1.0±0.2Vrms
Dielectric Withstanding Voltage 1.5UR+500V for 2 to 5 S (charge /Discharge current≤50mA )
Rated Voltage 1KV to 6KV
Capacitance Within the specified tolerance at 1KHz±20%, 1.0±0.2Vrms

Epoxy Coating for all parts, Wide range of general purpose applications

Rated Voltage	Capacitance (pF)
Rated Voltage	Temperature Characteristics
DC	Y5P (B)	Y5P (BN)	Y5U (E)	Y5V(F)	Z5U (E)	Z5V (F)
1KV	100~680	100~680		1000	1000~1500
	820~1000	820~1000	1000~15000	1500~2200	2200	3300~4700
	1200~1500	1200~1500	2200	3300	3300
	1800~2000	1800~2000	3300	4700	4700	6800
	2200	2200	4700	6800		10000
	2700~3300	2700~3300	6800	10000	6800	15000
	3900~4700	3900~4700	10000	15000	10000	22000
	5600~6800	5600~6800		22000		33000
	8200~10000	8200~10000				47000
2KV	100~470	100~470	470~1000	1000~1500	1000	1000~15000
	560~680	560~680	1500	2200	1500	2200
	820~1200	820~1200	2200	3300	2200
	1500~1800	1500~1800	3300	4700	3300	3300~4700
	2200	2200	3900	6800	4700	6800
	2700	2700	4700	10000	6800	10000
	3300~3900	3300~3900	6800	15000	10000
	4700	4700	10000	22000
3KV	100~180			1000
	220~470		1000	2200	1000
				3300
	560~680		2200		2200
	820~1000			4700
	1200~1500		3300		3300
