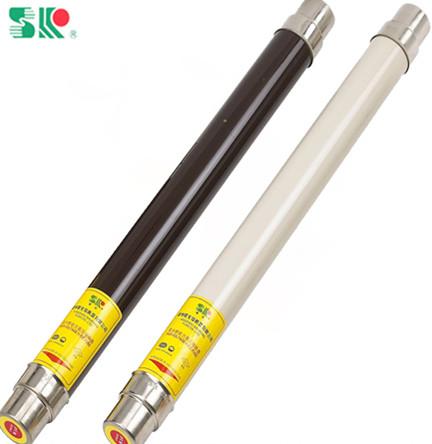

High Voltage Hrc Fuse, Brand Name : SR

We are offering high voltage hrc fuse
1.applications
h. V current-limiting fuses type s is mainly used in ac50hz, rated voltage 3.6~40.5kv, rated current up to 200a circuit for protection transformers and power equipments from overload and short-circuit. It can also be used with load switch, vacuum contact.
It conforms to iec282-1, gb15166.2 and din standard.
Design features
s type h. V hrc current-limiting fuses is insert installation. The striker parallers to the fuse element made from pure silver. They are sealed in the fuse tube filled with chemically treated high-purity quartz sand. The fuse tube is made from heat resistance, high duty ceramic or expoxy glass.
When fault circuit happens, the fuse link melts, the high-resistant metal wire paralleling to fuse links melts immediately at the appearance of the arc, and the striker jumps out to push the chained equipment contact, signaling the melting automatically cuttig the circuit.
The striker has spring type striker jumps out to push ethe chained equipment contact, signaling the melting automatically cutting the circuit. The striker has spring type striker use high pressure caused by the lighting powder to push the striker.
S type h. V. Hrc current-limiting fuses has many merits as high current-limiting ablilty, high breaking capacity, quick and punctual in action, reliable in performance.
2. Data of technical
1) xrnt-36---25a
rated voltage :36kv
rated current of fuse :25a
rated current of melter :1, 2, 4, 6.3, 10, 16, 20, 25 a
dimension :537*51mm
2) xrnt-36---40a
rated voltage :36kv
rated current of fuse :40a
rated current of melter :31.5, 32, 40 a
dimension :537*76mm
3) xrnt-36---100a
rated voltage :36kv
rated current of fuse :100a
rated current of melter :50, 63, 80, 100 a
dimension :537*88mm
3. Notes for ordering
please offer the followings while ordering:
1) type and name of products;
2) rated voltage and rated current;
3) breaking current and quantity;
4) please indicate if details of special requests while ordering.
