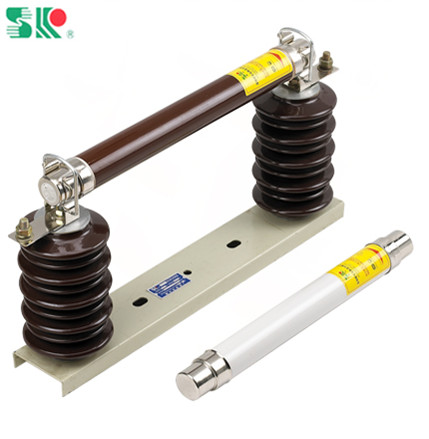

High Voltage Hrc Fuse, Brand Name : SR

We are offering high voltage hrc fuse.
1. General:
xrnt-12 high voltage fuse can be used in the indoor system with alternative current 50hz and rated voltage 10kv, in order to protect the power transformer and other electric equipment from overload or short circuit, it is also can be used with other apparatuses such as load switch and vacuum contactor.
2. Data of technical
a,xrnt-12----40a
rated voltage :12kv
rated current of fuse :40a
rated current of melter :1, 2, 4, 6.3, 10, 16, 20, 25, 31.5, 40 a
dimension :292*51mm
b,xrnt-12---125a
rated voltage :12kv
rated current of fuse :125a
rated current of melter :50, 63, 71, 80, 100, 125 a
dimension :292*76mm
c,xrnt-12----250a
rated voltage :12kv
rated current of fuse :250a
rated current of melter :160, 200, 250a
dimension :292*88mm
3. Notes for ordering
please offer the followings while ordering:
a,type and name of products;
b,rated voltage and rated current;
c,breaking current and quantity;
d,please indicate if details of special requests while ordering .
3 pieces per foam box and a foam box per carton
1. General:
xrnt-24 high voltage fuse can be used in the indoor system with alternative current 50hz and rated voltage 24kv, in order to protect the power transformer and other electric equipment from overload or short circuit, it is also can be used with other apparatuses such as load switch and vacuum contactor.
2. Data of technical
a,xrnt-24----32a
rated voltage :24kv
rated current of fuse :32a
rated current of melter :1, 2, 4, 6.3, 10, 16, 20, 25, 31.5, 32 a
dimension :442*51mm
b,xrnt-24---100a
rated voltage :24kv
rated current of fuse :100a
rated current of melter :40, 50, 63, 71, 80, 100 a
dimension :442*76mm
c,xrnt-24----200a
rated voltage :24kv
rated current of fuse :200a
rated current of melter :125, 160, 200 a
dimension :442*88mm
3. Notes for ordering
please offer the followings while ordering:
a,type and name of products;
b,rated voltage and rated current;
c,breaking current and quantity;
d,please indicate if details of special requests while ordering .
1. Material: ceramic
2. Color: brown, white
3. High voltage current limiting fuse
4. High breaking capability
1. Sdmaj-24kv/1~32a 510mm*51mm
2. Sfmaj-24kv/40~100a 510mm*76mm
3. Skmaj-24kv/125~200a 510mm*88mm
1. General:
xrnt-36 high voltage fuse can be used in the indoor system with alternative current 50hz and rated voltage 36kv, in order to protect the power transformer and other electric equipment from overload or short circuit, it is also can be used with other apparatuses such as load switch and vacuum contactor.
2. Data of technical
1) xrnt-36---25a
rated voltage :36kv
rated current of fuse :25a
rated current of melter :1, 2, 4, 6.3, 10, 16, 20, 25 a
dimension :537*51mm
2) xrnt-36---40a
rated voltage :36kv
rated current of fuse :40a
rated current of melter :31.5, 32, 40 a
dimension :537*76mm
3) xrnt-36---100a
rated voltage :36kv
rated current of fuse :100a
rated current of melter :50, 63, 80, 100 a
dimension :537*88mm
3. Notes for ordering
please offer the followings while ordering:
1) type and name of products;
2) rated voltage and rated current;
3) breaking current and quantity;
4) please indicate if details of special requests while ordering.
