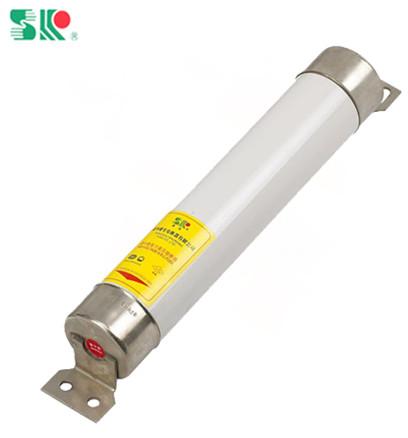

High Voltage Oil Switch Fuse, Brand Name : SR

Oil immersed high voltage fuse for transformer protection
key specifications/special features:
1. Oil-immersed
2. High breaking capability
3. High voltage current limiting fuse
4. Suitable for electrical power system of ac 50hz, rated voltage 36. -24kv, rated current up to 200a(3.6kv), 160a(7.2kv), 125a(12kv) and below. Circuit for protecting transformers and other power equipment from overload and short-circuit.
5. High-pressured fuse conforms to the national gb15166.2 standard and the international electrical committee iec 60282 standard as well as german din standard and british bs standard.
2. Data
rated voltage(kv): 3.6-24
rated current(a): 6.3-200
length: 254mm,359mm
