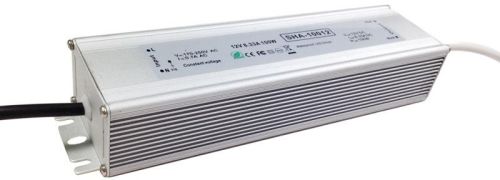

High Voltage Transformer For Mosquito Killer 24 V 100 W

we offer high voltage transformer for mosquito killer 24 v 100 w.
packaging & delivery
packaging details: 35pcscarton
delivery detail: 5 days for normal order
high quality emc lvd approved waterproof ip67 switching power supply 100w power supply 24v, 3 years warranty
constant voltage design
class 2 power unit
withstand voltage ip-op: 3kvac
protection:short circuit,overload,over voltage
ip67 design for indoor or outdoor installations
100% full load burn-in test
3 years warranty
safety: en60950
emc emission: en55022 en61000-3-2 en61000-3-3
emc immunity: en61000-4-2,3,4,5,6,8,11 en55024
model
sha-10012
sha-10024
output
dc voltage
12v
24v
rated current
8.3a
4.15a
current range
0~8.3a
0~4.15a
rated power
100w
100w
ripple&noise
120vp-p
150vp-p
set up,rise time
500ms, 20ms 230vac
input
voltage range
170~265vac 47~62hz
efficiency
85%
87%
ac current
0.75a230vac
leakage current
0.25ma 240vac
inrush current
cold start 100m ohms 500vdc
emc emission
compliance to en55022 (cispr22) class b,en61000-3-2 class a, en61000-3-3
emc immunity
compliance to en61000-4-2,3,4,5,6,8,11, en55024, light industry level, criteria a
others
dimension
200*45*35(l*w*h)
packing
0.49kg, xx pcsxxx.kgctn.
