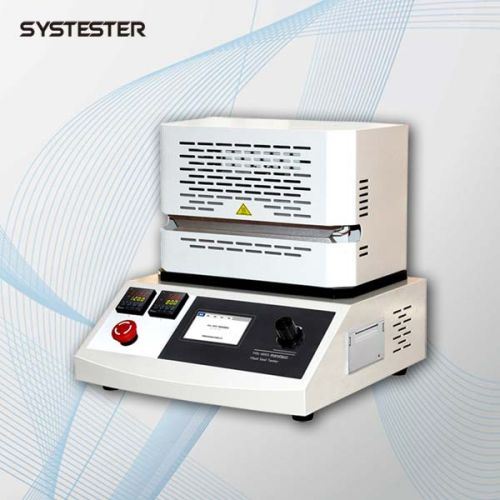

Highly Cost-effective Heat Seal Tester

Application
Applies to best parameters determination of heat sealability of various kinds of film. Heat sealability of film depends on temperature, pressure and heat time and the HSL-6001 Heat Seal Tester is widely used in food and pharmaceutical packaging industries.
Features
1: Our own patent technology
2: Embedded system control
3: Touch screen operation
4: TFT LCD display, UI flattening design, easy to operate
5: Dual heat jaws, temperature controlled independently
6: Pressure easy to adjust, and wide range.
7: Emergency stop button, safety design to prevent burns
8: Over temperature protection, over pressure protection
9: Micro-printer built in
10: DB9 RS232 communication port.
11: Ethernet communication available. (optional)
12: Bar code scanner available.(optional)
13: LMIS system is optional(Laboratory Management Information System), easy to share test data.
Technical indexes
Heat temperature: 8 ~ 300 °C
Accuracy: ±0.2° C
Dell time: 0.1~ 999.9s
Pressure: 0.05 MPa~1.1MPa
Heat surface: 265mm � 12 mm�optional�
Heat mode: independently
Gas source pressure: 0.05MPa ~ 1.1MPa (provide for yourself)
Gas source interface: Ф6mm
Outer dimension:410 mm (L)�396 mm (B)�416mm (H)
Power supply: AC 220V 50Hz
Net weight: 41kg
