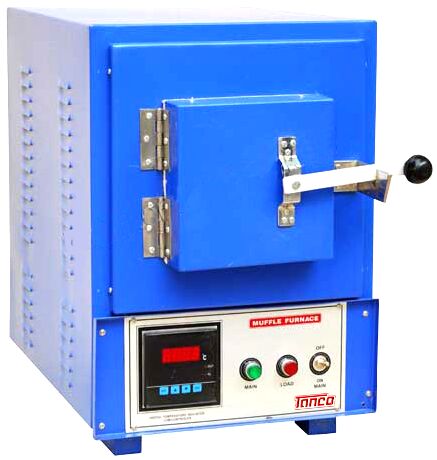

High Temperature Muffle Furnace (1500^oC) (PLT-243 A)

APPLICATIONS of Industrial Furnace

"TANCO" High Temperature Muffle Furnace is elegantly designed in various applications for Educational R&D labs, Chemical, Pharma, Steel Industries & Foundries & Treatment of samples under high temperature.
Low Cost option for heating the material on high temperature.

SALIENT FEATURES & CONSTRUCTION OF HIGH TEMPERATURE MUFFLE FURNACE

Floor Model Type.
Heating by Imported Silicon Carbide Rods.
Thermal loss is prevented by ceramic fiber insulation in space between the outer body & heating chamber.
Easily Replaceable Carbide Rods.
Saves Energy upto 30%.
Outstanding Temperature Reliability.
Having large surface radiation ratio to enhance thermal efficiency and power consumption.
Duly controlled by Accurate step down Transformer (Air Cooled).
Chamber made of Ceramic Zirconium Board.
Fitted with heavy hinges & door is duly insulated.
Elements are placed horizontally in the chamber.
Fitted with thermocouple & silver fuse for protection of chamber.
Control panel fitted with Digital Temperature Indicator cum Controller upto 16000C with sensor & AMP Meters.Temperature is controlled by electronic digital temperature indicator cum controller from 100^°C to 1450^°C, + 50C fitted on the front panel for easy operations.
Temperature is displayed by Digital LED with SV and PV display at front of the Furnace (Optional).
Operating Voltage: 220 Volts AC (50 Hz).

TECHNICAL SPECIFICATIONS & ORDERING INFORMATION OF HIGH TEMPERATURE MUFFLE FURNACE

Model No.	MFH - 1	MFH - 2	MFH - 3	MFH - 4
Inner Chamber in MM (W x H x D)	100 x 100 x 225	125 x 125 x 250	150 x 150 x 300	200 x 200 x 300
Inches Conversion	4 x 4 x 9	5 x 5 x 10	6 x 6 x 12	8 x 8 x 12
Rating in KW	2.5	4.0	5.0	7.0
Temperature Range	Maximum Temperature is 1600°C and working temp. 1450^°C
Heating	By Silicon Carbide Rods
Temp. Controller	Duly controlled by Accurate step down Transformer (Air Cooled)
Temp. Controller	By Microprocessor Based PID Digital Temperature Indicator cum Controller (Optional)
Temp. Sensitivity	±50C by digital electronic controller
Voltage	Operating Voltage: 220 Volts AC (50 Hz)
