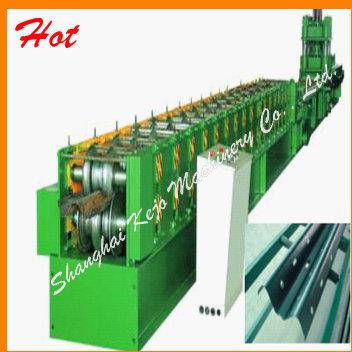

Highway Guardrail Roll Forming Machine

Detailed product description
roll forming machinery
1. Working flow :
decoiler -----flatting -----hydraulic punching ----- roll forming ----- hydraulic cutting to length ----- finished production table.
2. The main construction :
hydraulic decoiler-----------------------------------1 set
flatting device --------------------------------------1 set
hydraulic punching ---------------------------------1 set
main roll forming machine -------------------------1 set
cutting to length device----------------------------1 set
finished production table---------------------------1 set
computer control system --------------------------1 set
3. Technical parameter:
no.
item
parameter
1
suitable material
galvanized steel sheet/steel coil
2
max thickness
4.0mm
3
suitable of coil width
482/748mm
4
forming speed
10-15m/min
5
shaft material
45# steel
6
total power
22 kw
7
power
ac380v, 50hz, 3 phase
what's more, equipment can be specially designed and
manufactured at customers' requirements.
fine quality as well as low price.this new product is
to the taste of world market.
Products warranty: 12 month, and we will provide
the technical support for the whole life of the equipment.
