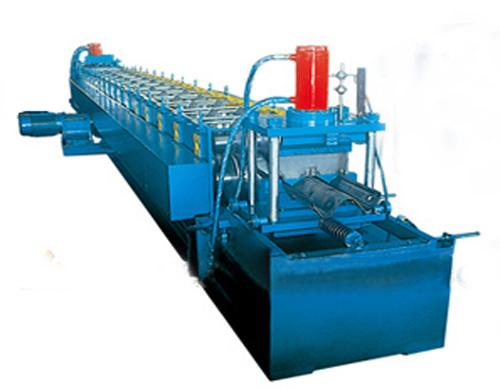

Guardrail Roll Forming MachineGuardrail Roll Forming Machine

Mateial:
1. Feeding Material:1.5-3.0mm
2. Feeding Width: 365mm
3. Effective Width: 550mm
4. Yield Strenth of Material: 245mpa or 550mpa
main Machine
1. type: Roll Forming Machine for Highway Panel Forming Machine
2. forming Step: 22 Steps
3. forming Speed: 12 M/min
4. thickness of Side Panel: 18mm
5. width of Chain: 3.5mm
6. rack: 450h Steel
7. shaft Diameter: 75mm
8. main Motor: 18.5kw
9. voltage: 380v 3phase 50hz
10. approx Weight: 9000kg
11. dimension: 10000（l）*1000(w)*1500(h)
hydraulic Cutting Device
1. cutting Mode: Stop to Cut, Post Cut, No-blanking Cut
2. cutting Pressure: Max 16mpa
3. pump Motor: 2.2kw
plc Control System
1. combined: Plc, Touch Screen, Encoder, Inverter, Etc
2. contral Voltage: 24v
marks
1. wide Used in Construction Building, Warehouse, Villa Building
2. we Can Manufacture Various Kinds of Machines to Satisfy Our Clients, You Can also Provided the Drawings What You Want or Samples, We Will Design the Project for Your Accordingly
