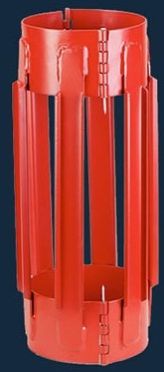

High-quality Steel Alloy Hinged Welded Rigid Centralizer

Eneroil 's Hinged Welded Rigid Centralizer or also known as Positive Bow Centralizers are uniquely designed with a flat-bottom U-profile of different depths, which permit an extremely high fluid passage. The straight bows provide nearly 100% stand-off (concentricity) when running inside a deviated cased hole. These premium-quality bows are strongly welded to the end collars and are made of a special alloy steel with uniform hardness providing optimum performance. Performance Features Eneroil’s welded hinged positive bow centralizers are designed for centralising the casing pipe in vertical, deviated, and horizontal wells. High-quality steel alloy bows with flat bottom U-profiles of different depths permit an extremely high fluid passage. The formed U-profile bows provide a superior stand-off and more effective centralisation than conventional bow centralizers. This enables efficient liner hanger and packer setting. These Hinged Welded Rigid Centralizers are highly suitable for stage and surface cementing Hinge locking pins are made of high-strength steel for maximum structural strength. Bows can be configured for any hole diameter with a choice of various standard bow heights for optimum performance and centralisation to suit the outer casing combinations Its high performance characteristics are combined with an easy field assembly
