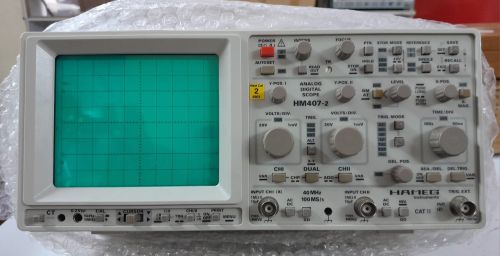

Acrylic hm407-2 Analog Digital Scope, Brand Name : RF Connector House

Electrical Specifications

• Bandwidth: 40 MHz (Analog + DSO)

• Channels: 2

• Vertical Sensitivity: 1 mV/div to 20 V/div

• Time Base (Sweep Speed): 0.5 s/div to 50 ns/div

• Rise Time: ~8.8 ns (typical for 40 MHz bandwidth)

• Input Impedance: 1 MΩ || 20 pF

• Max Input Voltage: 400 V (DC + peak AC)

• Triggering:

  • Sources: CH1, CH2, Line, External

  • Modes: Auto, Normal, Single, TV sync
