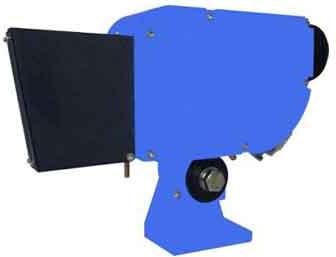

HMD-SM Hot Metal Detector

Supply TypeManufacturer, Exporter
Preferred Buyer Location All over the world

Our company is one of the well-known Manufacturers, Exporters and Suppliers of HMD-SM Hot Metal Detector in California. Our Hot Metal Detector is specially designed to detect hot metal across the....

View More Details

Send Enquiry

Product Details

Our company is one of the well-known Manufacturers, Exporters and Suppliers of HMD-SM Hot Metal Detector in California. Our Hot Metal Detector is specially designed to detect hot metal across the full width of a production line. We use premium metal for the fabrication of HMD-SM Hot Metal Detector. Our Metal Detectors are highly durable and withstand adverse situations. Our HMD-SM Hot Metal Detector is available at competitive price.

Highlights :

HMD-SM is a scanning mode hot metal detector, enabling it to detect hot metal across the entire width of a production line.
The scanning capability and advanced sensor detector allow the sensor to be installed remotely from the target further protecting the electronics and extending the life of the sensor

Specifications

Operating Temperature	-25^oC to +70^oC (-13^oF to +158^oF). With water cooling: +120^o (250^oF)
Output	Transistor static output: push-pull output maximum current 100 mA, output voltage 0 VDC or 24 VDC, Relay output single-pole double throw contacts, contact capacity rating is 250VAC/10A, relay operating time = 7.5 ms, relay release time = 3 ms.
Power Input	24 VDC, 110VAC, 220VAC @ 5W
Output response time	10 degree – 1ms, 30 degree – 2ms, 50 degree – 4 ms
