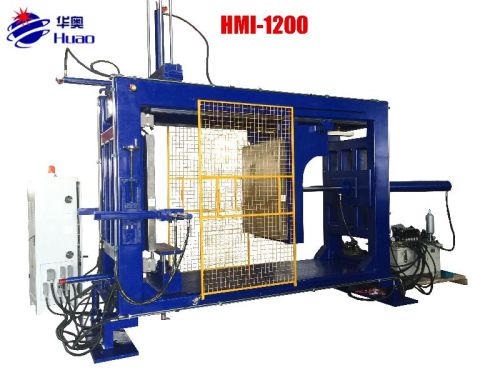

HMI-1200 Servo HMI APG Clamping Machine

MOQ1 Set(s)
Mould-filling weight2T
Power of hydraulic station7.5KW
Outline dimension7300*1300*3100
Max/Min mould clamping distance1250*240
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Company Information

Member Since 8 Years
Nature of Business Supplier
Year of Establishment 1993

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Inclination angle of complete machineVertical 5° Horizontal 5°
Upper and lower core-pulling stroke760mm,350mm
Weight of complete machine4700KG
Clamping plate600*800mm
Outline dimension7300*1300*3100
Power of hydraulic station7.5KW
Max/Min mould clamping distance1250*240
Mould-filling weight2T

This machine is full automatic,servo and plc touch screen control. Machine advantages:
1. Servo motor control
2.plc touch screen control
3.fully automatic design
auto start machine & heating clamp plate.
auto setting hydraulic pressure
auto setting heating temperature
auto setting valve flow
4.can save more than 100 product datas.

Additional Information

Payment Terms L/C, D/A, D/P, T/T, Western Union
Port of DispatchOPTIONAL
Packaging DetailsPackaging & Delivery Packaging Details: Apg molding machine package 1.Covered with bubble film than packed with Standard export wooden case 2.Machine Size 5100X1680X4530mm 3.N/W 6500KG | G/W 7000KG Delivery Detail: About 55 workdays after down payment.
Delivery Time55
