Hoist Crane, Brand Name : RP

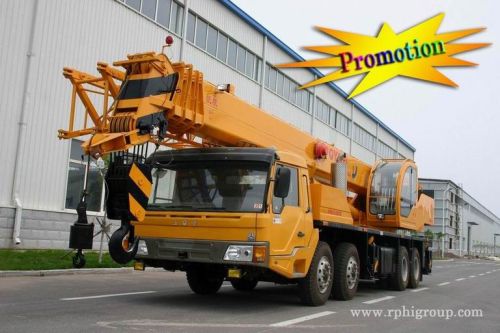

We are offering Hoist Crane. M5353jqz35g（qy35g）crane is fully hydraulic telescopic crane, the maximum rated lifting capacity is 35t. It can be applied in various conditions for lifting and installation work, such as industrial and mining establishments, building site, station, sea port, warehouse and so on.
Working condition
altitude: 0-4500m
temperature: -25℃--+45℃
allowed working condition: solid, stable land, the vehicle should be horizontal
wind force: ≤6 degree
working range
m5353jqz35g（qy35g）crane is fully hydraulic telescopic crane, the maximum rated lifting capacity is 35t. It can be applied in various conditions for lifting and installation work, such as industrial and mining establishments, building site, station, sea port, warehouse and so on.
main parameters
items
unit
value
working performance parameters
max. Rated lifting weight
kg
35000
max. Lifting force of the basic boom
kn.m
1225
max. Height of the basic boom
m
11.2
max. Lifting force of the longest main boom
kn.m
638
max. Height of the main boom
m
33
max. Height of the vice boom
m
48
max. Speed of the single rope
m/min
110
working speed
turning speed
r/min
0-2.4
lifting time of the lift boom
s
70
extension time of the lift boom
s
50
traveling parameters
max. Traveling speed
km/h
70
the whole weight
kg
35040
max. Grade ability
%
26
min. Turning radius
m
12
min. Ground clearance
m
0.23
approaching angle
°
17
departure angle
°
11
dimension parameters
external dimension（length×width×height）
mm
13312×2494×3500
vertical span of outrigger
m
5.4
horizontal span of outrigger
m
6.0
length of main boom
m
10.5~33
elevation of boom
°
-2~80
length of vice boom
m
8.5~14.5
chassis
model
—
taz5363j
engine model
—
wp10-290
rated power/speed
kw/（r/min）
213/2200
max. Torque/rotate speed
n.m/（r/min）
1160/1300-1600
